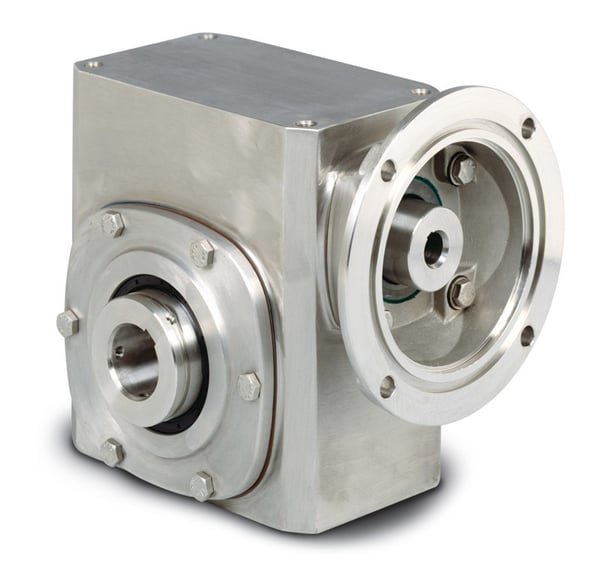

Baldor-Reliance SSGHF4021AH 900 Continuous-Duty Type SSHF Right Angle Worm Gear Speed Reducer With HNBR Seals, C-Face Quilled Input, Hollow Shaft Output, 0.66 hp, 40:1 Gear Ratio, 44 rpm Maximum Output, 680 in-lb Torque Rating

Selected IDW IMAGE 1fe279712cf8ee5054853cc59facd49d4e6a7b8a5e1d6e2b9ea3ad219d6dc77b
IDW IMAGE 1fe279712cf8ee5054853cc59facd49d4e6a7b8a5e1d6e2b9ea3ad219d6dc77b

Documents

Short Description

With three different protection types to choose from Baldor 900 series right angle reducers, they are sure to stand up to the test of time in nearly any application. Rather the application environment requires industrial grade general purpose, washdown duty for high humidity, or all stainless construction for harsh caustic environments, Baldor has a solution that will ensure long maintenance free operation.

Features

  • Smooth 316 stainless steel finish minimizes the chance for bacteria growth
  • Excellent corrosion resistance, especially where bleach solutions may be used
  • 300 series stainless steel output shaft and stainless hardware provides superior corrosion resistance
  • O-ring sealed housing insures that all entry points are completely sealed prevention ingress of water or other contaminants, extending service life
  • Completely sealed and lubricated for life with USDA H1 food grade synthetic oil which ensures years of trouble-free operation

Specification

Finish
Epoxy Powder Coated
Gear Ratio
40:1
Material
Stainless Steel
Keyway Size
0.187 x 0.093 in
Input Maximum Speed
1750 rpm
Input Type
C-Face Quilled
LubricationType
Synthetic Oil
CentreDistance
2.06 in
InputSize
5/8 in
OutputSize
1-1/4 in
Series
900
Type
Continuous-Duty Type SSHF
Torque Rating
680 in-lb
Rotation Type
Left Hand/Right Hand
Output Maximum Speed
44 rpm
Dimensions
8.63 in L x 6.44 in W x 7.6 in H
Horsepower
0.66 hp
Mounting Type
56C
Output Type
Hollow Shaft
