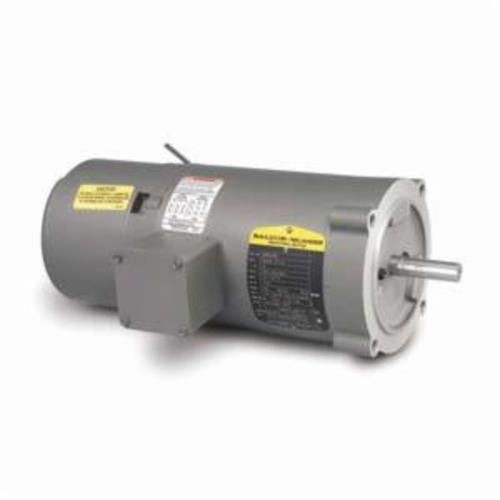

Baldor-Reliance VBM3542 Brake Motor, 208/230/480 VAC, 1.3/2.6/2.9 A, 56 Frame, 3 Phase, 0.75 hp
Baldor-Reliance VBM3542 Brake Motor, 208/230/480 VAC, 1.3/2.6/2.9 A, 56 Frame, 3 Phase, 0.75 hp
SKU: BDRVBM3542
Manufacturer Part Number: VBM3542
UPC: 781568115404
Documents
Features
- Power factor 71
- No mounting base
Specification
| Frame | 56 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bearing Type | Ball |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Size | 5/8 in Dia |
| Speed | 1725 rpm |
| Temperature Rating | 40 deg C |
| Standard & Approvals | CSA Certified |
| Horsepower | 0.75 hp |
| Voltage Rating | 208/230/480 VAC |
| Torque Rating | 6 ft-lb |
| Enclosure Type | TENV |
| Dimensions | 15.86 in L x 9.28 in W |
| Catalog ID | BDRVBM3542 |
| Amperage Rating | 1.3/2.6/2.9 A |
