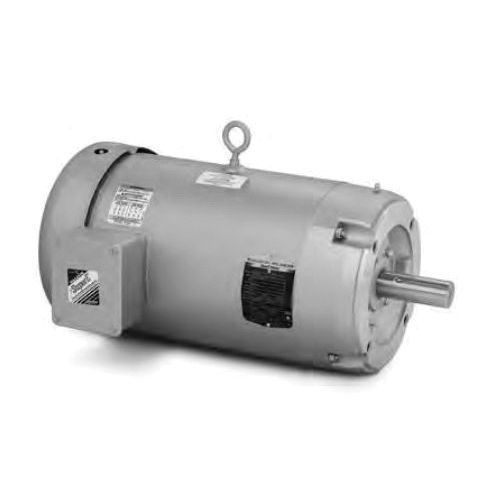

Baldor-Reliance VEM2333T Continuous Duty Type 0944M AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254TC Frame, 1765 rpm Speed, C-Face Footless Mount

Selected VEM2333TBaldor-Reliance VEM2333T Continuous Duty Type 0944M AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254TC Frame, 1765 rpm Speed, C-Face Footless Mount
VEM2333TBaldor-Reliance VEM2333T Continuous Duty Type 0944M AC Motor, Totally Enclosed Fan Cooled Enclosure, 15 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254TC Frame, 1765 rpm Speed, C-Face Footless Mount

Documents

Short Description

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Features

  • Footless design reduces weight and improves safety
  • Locked drive end bearing to allow mounting in any configuration
  • Suitable for inverter use
  • Designed for longevity

Specification

Frame
254TC
Frequency Rating
60 Hz
Insulation Class
Class F
Material
Iron
Mounting Type
C-Face Footless
Number of Speeds
1
Phase
3 ph
Rotation
Reversible
Service Factor
1.15
Speed
1765 rpm
Temperature Rating
40 deg C
Voltage Rating
208/230/460 VAC
Standard & Approvals
CSA/CSA EEV Certified, UR Listed
Application Type
General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
Bearing Type
Ball
Enclosure Type
Totally Enclosed Fan Cooled
Horsepower
15 hp
Dimensions
23.8 in L x 16.67 in W
Amperage Rating
38/36.2/18.1 A
Application
Pumps, Conveyors and Industrial Machines
Type
Continuous Duty Type 0944M
Torque Rating
44.6 ft-lb
Shaft Size
1-5/8 in
