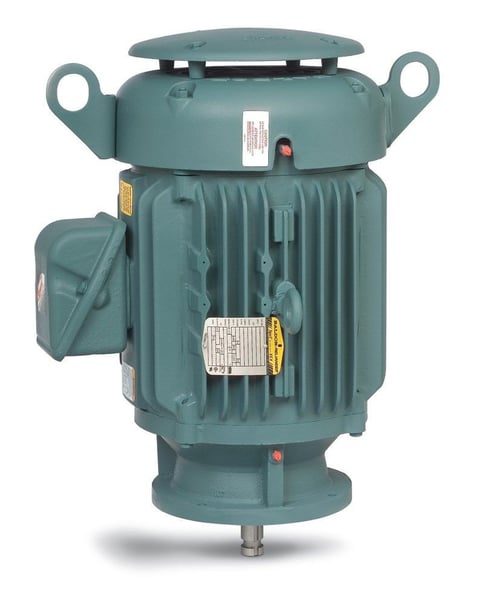

Baldor-Reliance VHECP4103T Continuous Duty Type 1046M AC Motor, Totally Enclosed Fan Cooled (TEFC) Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284HP Frame, 1770 rpm Speed, Foot/P-Base Vertical Mount
Baldor-Reliance VHECP4103T Continuous Duty Type 1046M AC Motor, Totally Enclosed Fan Cooled (TEFC) Enclosure, 25 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 284HP Frame, 1770 rpm Speed, Foot/P-Base Vertical Mount
SKU: BDRVHECP4103T
Manufacturer Part Number: VHECP4103T
EAN: 3471523095113
UPC: 781568396698
Short Description
Features
- Vertical lifting provisions for ease of installation
- Severe duty construction for harsh environments
- Corrosion resistant epoxy finish
- Stainless steel nameplates and seals
Specification
| Frame | 284HP |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | Class F |
| Material | Iron |
| Mounting Type | Footed/P-Base Vertical |
| Number of Speeds | 1 |
| Phase | 3 ph |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Size | 1-1/8 in |
| Speed | 1770 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 74.2 ft-lb |
| Type | Continuous Duty Type 1046M |
| Voltage Rating | 208/230/460 VAC |
| Application | Harsh Environments, Petro Chemical, Pulp and Paper |
| Standard & Approvals | CE/CSA/CSA EEV Certified, UR Listed |
| Amperage Rating | 64/62/31 A |
| Dimensions | 30.69 in L x 23.86 in W |
| Application Type | Sewage & Wastewater Pump Motors |
| Bearing Type | Ball |
| EANUCC13 | 3471523095113 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Horsepower | 25 hp |
