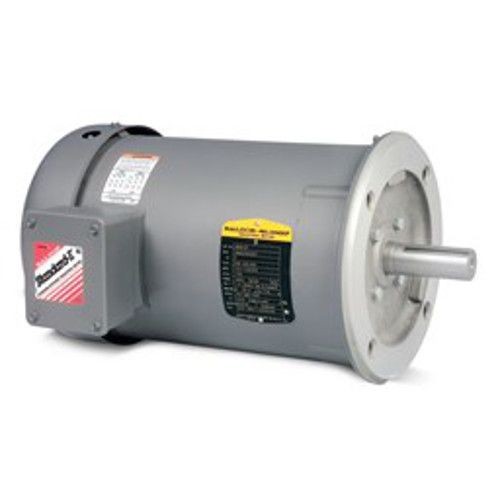

Baldor-Reliance VM3542 AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 56 Frame, 0.75 hp, 1725 rpm
Baldor-Reliance VM3542 AC Motor, 208/230/460 VAC, 1.5/3/3.2 A, 56 Frame, 0.75 hp, 1725 rpm
SKU: BDRVM3542
Manufacturer Part Number: VM3542
UPC: 781568109595
Documents
Features
- Locked drive end bearing
- 6 power factor
Specification
| Frame | 56 |
|---|---|
| Frequency Rating | 60 Hz |
| Insulation Class | F |
| Material | Steel |
| Mounting Type | F1 |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.5/3/3.2 A |
| Bearing Type | Ball |
| Catalog ID | BDRVM3542 |
| Dimensions | 11.35 in L x 9.27 in W |
| Enclosure Type | TEFC |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Size | 5/8 in Dia |
| Speed | 1725 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 10 ft-lb |
| Voltage Rating | 208/230/460 VAC |
| Application | Pumps, Fans, Conveyors, Machine Tools and Gear Reducers |
| Standard & Approvals | CSA Certified, UR Standard, NEMA |
| Horsepower | 0.75 hp |
