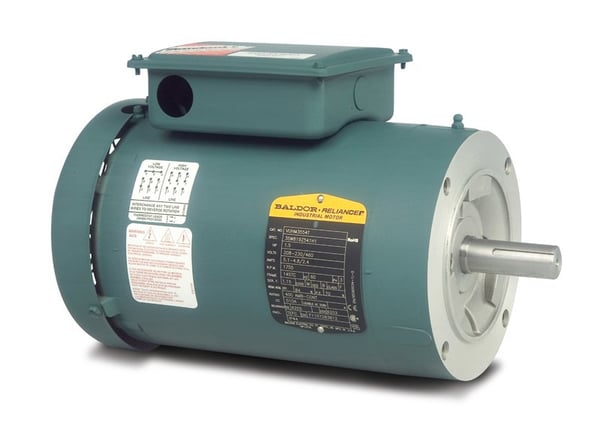

Baldor-Reliance VUHM3542 Continuous Duty Type 3514M AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.75 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1735 rpm Speed, C-Face Footless Mount

Selected IDW IMAGE 8224f8178bbc88cff034785319bd2058bc4245fe8f717251a75d248bee7a9270
IDW IMAGE 8224f8178bbc88cff034785319bd2058bc4245fe8f717251a75d248bee7a9270

Documents

Short Description

Single phase and three phase general purpose motors are designed to meet or exceed the energy efficiency requirements of the United States, Canada and Mexico for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability. The extensive line of General Purpose motors are available in a wide variety of enclosure construction from industrial steel band open designs where water and dust exposure is moderate, to totally enclosed cast iron designs where exposure to water, dust and corrosives exists. The Super-E® motors provide NEMA premium efficiency and are Inverter ready with wide variable torque speed ranges as standard. For motors with features outside the capabilities below, please contact your Baldor-Reliance sales representative.

Features

  • Low profile F-3 conduit box
  • Multiple base mounting configurations
  • Color coded and numbered leads for ease of connectivity
  • Inverter ready
  • Laser etched nameplate with highly legible font

Specification

Frequency Rating
60 Hz
Insulation Class
Class F
Material
Steel
Mounting Type
C-Face Footless
Number of Speeds
1
Phase
3 ph
Rotation
Reversible
Shaft Size
7/8 in
Speed
1735 rpm
Temperature Rating
40 deg C
Torque Rating
2.27 ft-lb
Type
Continuous Duty Type 3514M
Application
Conveyors, Baggage Handling, Packaging Equipment and Door Operators
Standard & Approvals
CE/CSA Certified, NEMA Premium®, RoHS Compliant, UR Listed
Amperage Rating
2.5/2.4/1.2 A
Dimensions
13.23 in L
Application Type
General Purpose AC Motors, Unit Handling Motors, Elevator Motors, Hoist Motors
Bearing Type
Ball
Horsepower
0.75 hp
Voltage Rating
208/230/460 VAC
Service Factor
1.15
Frame
56C
Enclosure Type
Totally Enclosed Fan Cooled
