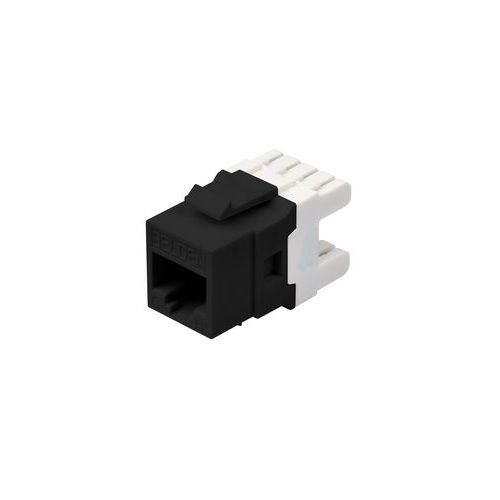

Belden® AX101321 KeyConnect Style Modular Jack, Cat 6 RJ45 Module, Keystone Mount, 1 Port, Plastic, Black

Selected Belden® AX101321 KeyConnect Style Modular Jack, Cat 6 RJ45 Module, Keystone Mount, 1 Port, Plastic, Black
Belden® AX101321 KeyConnect Style Modular Jack, Cat 6 RJ45 Module, Keystone Mount, 1 Port, Plastic, Black

Documents

Short Description

The REVConnect connectivity system offers versatility by using a universal termination core and termination method for all RJ45 connections. Its unique universal termination process can be used with both shielded and unshielded cables, Category 5e through Category 6A and can accept both jack and plug housings. Both the new REVConnect CAT6+ jacks and the CAT6+ modular jacks provide performance margins when installed as part of 2400, 3600 and 4800 systems. Category 6 performance exceeds all parameters specified in the Category 6 standard. All performance characteristics have been set to guarantee transmission performance up to 300 MHz and a data-rate of up to 4.8 GB/sec.

Features

  • Provides excellent durability and performance stability
  • Offers performance margins for all gigabit network applications
  • Provides a safer work method and quicker installation
  • REVConnect offers great versatility and labor savings
  • Both modular jacks meet and exceed all Category 6 component performance
  • REVConnect requires no pair separation step, the best connector for bonded and non-bonded cable
  • REVConnect terminates 4 pairs simultaneously with Belden®'s universal termination tool
  • CAT 6 modular jacks compatible with Belden®'s rapid termination tool
  • Copper alloy with 50 u in gold over nickel front connection
  • Copper alloy with nickel plating rear connection
  • -10 to 60 deg C operating temperature
  • 1.5 A current, 500 MOhm insulation resistance
  • Individually packaged in a plastic bag

Specification

Material
Plastic
Module Type
Cat6+/RJ45
Mounting Type
Keystone
Number of Ports
1
Minimum Order Qty
1
Order Interval
1
Color
Black
Dimensions
0.88 in H x 0.64 in W x 1.29 in D
Type
KeyConnect Style
Application
Indoor
Standard & Approvals
FCC Part 68, Subpart F, IEC 60603-7, RoHS Compliant, ISO/IEC 11801:2002 Ed.2, ETL, ACA, Bi-National Standard Listed
Includes
T-Bar
Catalog ID
BELAX101321
