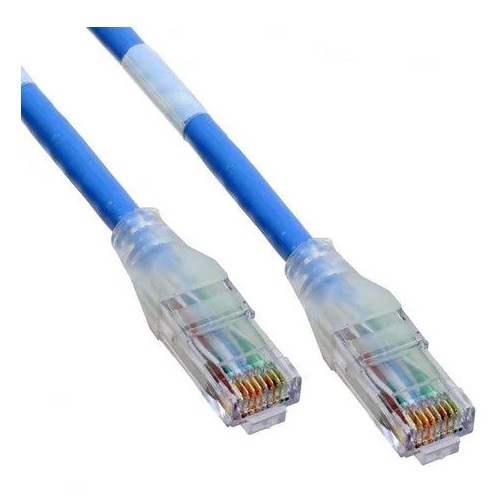

***CLOSEOUT*** Belden® C601106005 Type CMR Bonded Pair Patch Cord, Cat 6+, 24 AWG Bare Solid Copper Conductor, RJ45 Plug Connector, 5 ft L Cord
Selected BELC601106005
***CLOSEOUT*** Belden® C601106005 Type CMR Bonded Pair Patch Cord, Cat 6+, 24 AWG Bare Solid Copper Conductor, RJ45 Plug Connector, 5 ft L Cord
SKU: BELC601106005
Manufacturer Part Number: C601106005
Short Description
The Cat6+ shielded modular cords are 4-pair 24 AWG F/UTP modular cords designed to be used within the Belden IBDN 2400 shielded System. These modular cords offer the best combination of transmission performance and shielding integrity.
Features
- Maximum RL performance under all patching conditions
- Superior ruggedness and durability
- Cable de-rating eliminated
- Use bonded pair technology
- Rugged, overmolded boot, solid conductors
- 4 pair patchcord
- Cross web overall cabling fillers
- 0.225 in overall nominal diameter
- Phosphor bronze with 50 micro inch gold over nickel plating blades for front connection
- Translucent boot color
- T568A/B-T568A/B wiring scheme
- -10 to 60 deg C installation temperature rating, -40 to 70 deg C storage temperature rating
- 111.205 N maximum recommended pull tension
- 26.416 mm minimum bend radius
- 1000 V RMS at 60 Hz for 1 min dielectric strength
- 500 MOhm minimum insulation resistance
- 20 MOhm maximum contact resistance
Specification
| Temperature Rating | -10 to 60 deg C |
|---|---|
| Closeout | YES |
| Category Type | Cat 6+ |
| Cord Length | 5 ft |
| Insulation Material | Polyolefin |
| Jacket Color | Blue |
| Conductor Size | 24 AWG |
| Jacket Material | PVC |
| Amperage Rating | 1.5 A |
| Conductor Type | Bare Solid Copper |
| Type | Type CMR Bonded Pair |
| Connector Type | RJ45 Plug |
