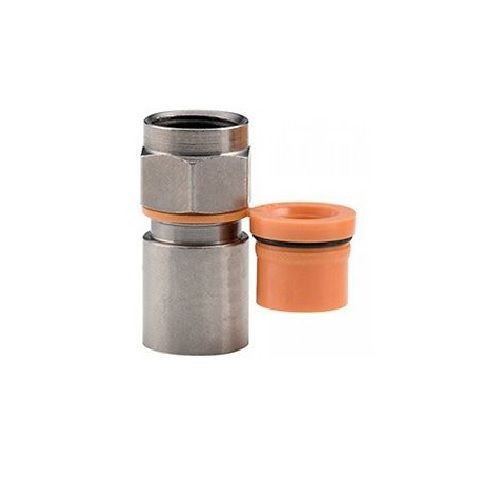

Belden® Snap-N-Seal® SNS6PLA 2-Piece Type F Compression Connector, RG-6 Plenum Cable
Belden® Snap-N-Seal® SNS6PLA 2-Piece Type F Compression Connector, RG-6 Plenum Cable
SKU: BELSNS6PLA
Manufacturer Part Number: SNS6PLA
UPC: 786210738161
Features
- Through a unique 360 deg compression process, Snap-N-Seal® connectors also offer the signal leakage protection required for today's systems
- Connectors manufactured from high quality brass, NiTin plated for maximum corrosion resistance
- Design incorporates UV resistant plastic and O-rings
- 1/4 to 1/4 in cable preparation is standard
- Multiple tool options make installation fast, easy and reliable
- Brass nut, post and collar
- NiTin plated nut and collar
- Tin plated post finish
- Ethylene propylene O-rings
- 30 dB up to 1GHz typical return loss
- -0.2 dB up to 1GHz typical insertion loss
- -85 dB typical RFI shielding
- Cable dependent typically 40 lb minimum cable retention
- Cable dependent typically 20 lb maximum cable retention
- 0.191 in post ID
- 0.253 in sleeve ID
- -40 to 140 deg F temperature rating
Specification
| Material | Brass |
|---|---|
| Type | 2-Piece Type F |
| Standard & Approvals | RoHS Compliant |
| Cable Type | RG-6 Plenum |
| Color | Orange |
| Finish | Nickel Plated |
