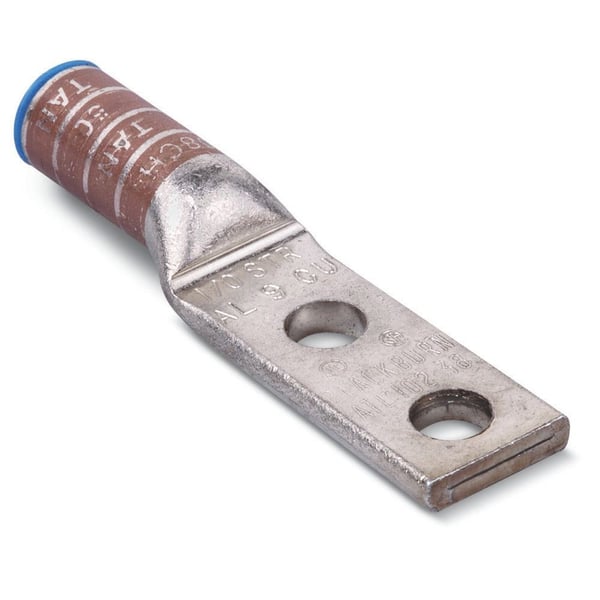

Color-Keyed® ATL5002 2-Hole Compression Lug, 500 to 700 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum
Color-Keyed® ATL5002 2-Hole Compression Lug, 500 to 700 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum
SKU: BLKATL5002
Manufacturer Part Number: ATL5002
EAN: 5415022245332
UPC: 783786611225
Short Description
Features
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 2-11/16 in L |
| Barrel Type | Standard |
| Catalog ID | BLKATL5002 |
| Color | Pink |
| Conductor Size | 500 to 700 kcmil |
| Conductor Type | Aluminum/Copper |
| Stud Size | 1/2 in |
| Tongue Type | Straight |
| Type | 2-Hole |
| Voltage Rating | 35 kV |
| Standard & Approvals | UL Listed, CSA Certified, UL File No. E9809 |
| Tongue Size | 3 in L x 1-25/32 in W x 3/8 in THK |
| Specifications | 1-3/4 in Hole Spacing, Tin Plated |
| Series | ATL |
| Overall Length | 6-11/16 in |
| EANUCC13 | 5415022245332 |
