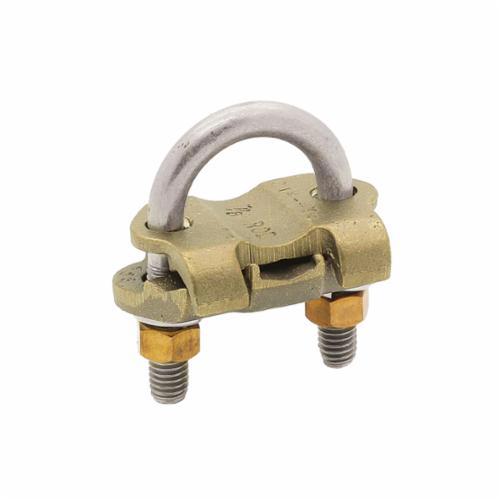

Blackburn® E-Z Ground® GUV5821 Type GUV Non-Insulated U-Bolt Grounding Clamp, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper

Selected GUV5821Blackburn® E-Z Ground® GUV5821 Type GUV Non-Insulated U-Bolt Grounding Clamp, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper
GUV5821Blackburn® E-Z Ground® GUV5821 Type GUV Non-Insulated U-Bolt Grounding Clamp, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper

Documents

Short Description

Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.

Features

  • Specially designed spacer provides proper alignment between cable and electrode and affords more positive contact area
  • Excellent for connecting multiple electrodes with a single cable, such as in substation grounding
  • All components cast or forged from copper alloy
  • UL 467 listed for direct burial
  • Without insulation
  • 3/8 in IPS pipe

Specification

Material
Copper
Pipe Size
3/8 in
Rod Size
5/8 to 3/4 in
Series
GUV
Application
For connecting copper or copper-clad steel grounding conductor to ground rod or pipe
Standard & Approvals
UL File No E3060, RoHS Compliant
Conductor Size
4 to 2/0 AWG
Dimensions
2-13/16 in L x 2-1/4 in W x 1-9/16 in D
Conductor Type
Copper/Copper-Clad Steel
