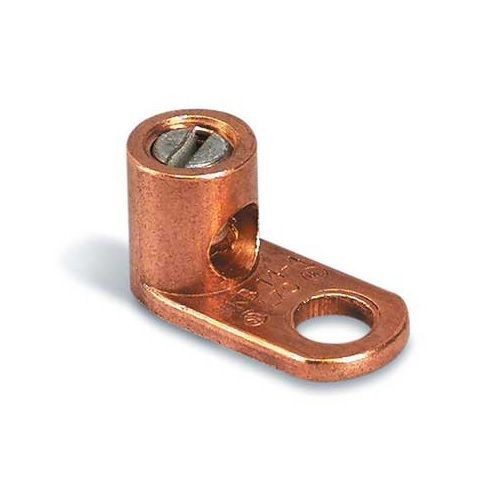

Blackburn® L70 Type L Compact Mechanical Connector, 14 to 4 AWG Stranded Solid Copper Conductor, 9/32 in Stud, 1 Bolt Holes, Copper

Selected Blackburn® L70 Type L Compact Mechanical Connector, 14 to 4 AWG Stranded Solid Copper Conductor, 9/32 in Stud, 1 Bolt Holes, Copper
Blackburn® L70 Type L Compact Mechanical Connector, 14 to 4 AWG Stranded Solid Copper Conductor, 9/32 in Stud, 1 Bolt Holes, Copper

Short Description

Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.

Features

  • Cold forged from pure electrolytic copper with 99 percent conductivity
  • 1-piece construction for strength and durability
  • Excellent for confined quarters
  • Steel plated screw
  • 1 stud of 9/32 in

Specification

Material
Copper
Number of Bolt Holes
1
Specifications
1-Conductor, Socket, Screwdriver Slot Head Screw
Tongue Size
21/32 in L x 17/32 in W x 3/32 in THK
Tongue Style
Straight
Type
Type L Compact
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, CSA Certified, UL File No. E9809
Conductor Size
14 to 4 AWG
Dimensions
1-1/8 in L x 17/32 in W x 35/64 in H
Conductor Type
Stranded Solid Copper
Stud Size
9/1/1932 12:00:00 AM
