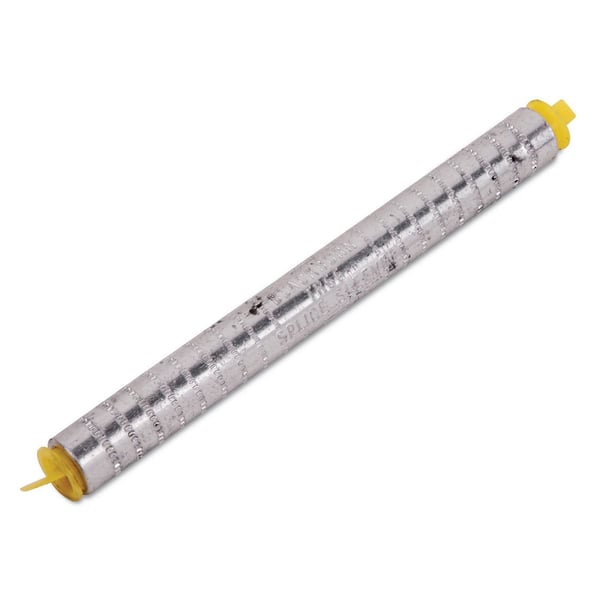

Blackburn® TR66 Type TR Neutral Semi-Tension Triplex Service Entrance Splice, 1/0 AWG ACSR/Aluminum Conductor, Die Code: 5/8, 6 in L, Aluminum

Selected TR66Blackburn® TR66 Type TR Neutral Semi-Tension Triplex Service Entrance Splice, 1/0 AWG ACSR/Aluminum Conductor, Die Code: 5/8, 6 in L, Aluminum
TR66Blackburn® TR66 Type TR Neutral Semi-Tension Triplex Service Entrance Splice, 1/0 AWG ACSR/Aluminum Conductor, Die Code: 5/8, 6 in L, Aluminum

Documents

Short Description

Blackburn® stands for quality and reliability as a supplier of materials to connect overhead distribution power lines and equipment.

Features

  • All seasons environmental conditions
  • Triplex neutral splice with semi-tension
  • Contains oxide inhibiting compound
  • 5/8 in die series, 5/8 (OD58 tool) peach, G, TU mechanical dies
  • Color coded and marked for easy identification
  • 1 AWG ACSR end A conductor

Specification

Specifications
2-Conductor, 0.373 to 0.398 in Dia End A
Type
Type TR Neutral Semi-Tension Triplex
Application
For service entrance on commercial and industrial loads
Standard & Approvals
ANSI C119.4
Minimum Order Qty
1
Order Interval
1
Catalog ID
BLKTR66
Color
Yellow
Conductor Size
1/0 AWG
Conductor Type
ACSR/Aluminum
Connector Type
Crimp/Compression
Length
6 in
Material
Aluminum
Die Code
5/8/2025 12:00:00 AM
