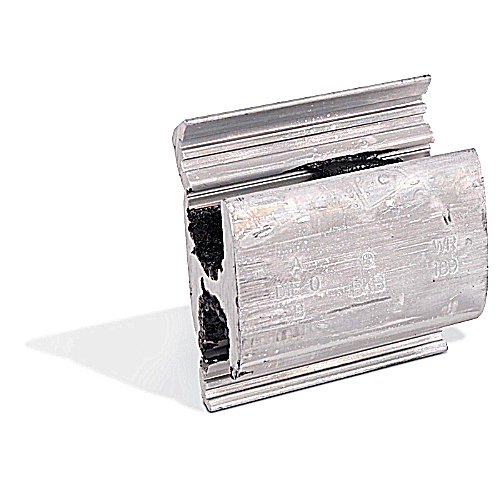

Blackburn® WR189 Type WR Wide Range Compression H-Tap Connector, H Shape, 3 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded, 3/0 to 1 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum

Selected Blackburn® WR189 Type WR Wide Range Compression H-Tap Connector, H Shape, 3 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded, 3/0 to 1 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum
Blackburn® WR189 Type WR Wide Range Compression H-Tap Connector, H Shape, 3 to 1/0 AWG ACSR, 2 to 2/0 AWG Stranded, 3/0 to 1 AWG Solid Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum

Documents

Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Features

  • Made of 1350 aluminum alloy for high-strength and high-conductivity
  • Standard compression tools and dies install all sizes - no special tools needed
  • Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape
  • Fold-in tabs provide tab interlock as tool closes
  • Pre-filled with oxide inhibitor held captive in the rib/connection area
  • Compression/crimp connection
  • 2 conductors
  • Tap - 2-6 AWG ACSR, 1-6 AWG stranded, 1/0-6 AWG solid
  • Conductor range - main - 1/0 - 3 ACSR, 2/0 - 2 AWG stranded, 3/0 - 1 AWG solid

Specification

Material
Aluminum
Shape
H
Tap Size
2 - 6 AWG ACSR
Temperature Rating
90 deg C
Type
Wide-Range
Application
For Combinations of Aluminum to Aluminum or Aluminum to Copper Code Conductors
Standard & Approvals
ANSI C119.4 Approved, RoHS Compliant, RUS Accepted
Conductor Type
ACSR/Stranded/Solid/Aluminum/Copper
Dimensions
1-11/16 in L
Specifications
O Die Code, 0.266 in - 0.419 in Conductor Main Diameter, 0.162 in - 0.332 in Conductor Tap Diameter
