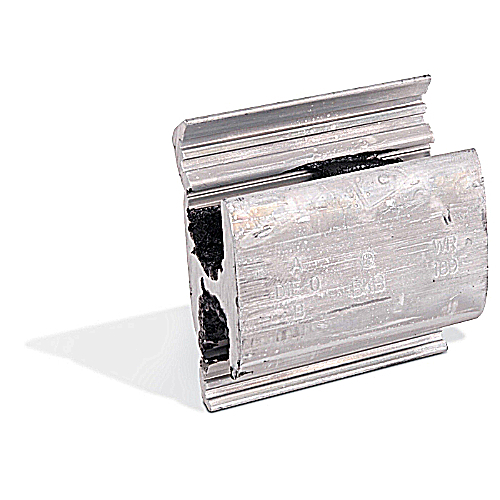

Blackburn® WR379 Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR, 4/0 AWG Stranded Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum
Blackburn® WR379 Type H Wide Range Compression Tap Connector, H Shape, 4/0 to 3/0 AWG ACSR, 4/0 AWG Stranded Main/Run, 6 to 2 AWG ACSR, 6 to 1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum
SKU: BLKWR379
Manufacturer Part Number: WR379
UPC: 783786100095
Documents
Short Description
Features
- Made of 1350 aluminum alloy for high-strength and high-conductivity
- Standard compression tools and dies install all sizes - no special tools needed
- Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape
- Fold-in tabs provide tab interlock as tool closes
- Pre-filled with oxide inhibitor held captive in the rib/connection area
- Compression/crimp connection
- 2 conductors
- Tap - 2-6 AWG ACSR, 1-6 AWG stranded, 1/0-6 AWG solid
- Conductor range - main - 4/0 - 3/0 ACSR, 4/0 AWG stranded
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Specifications | D, D3 Die Code, 0.475 in - 0.563 in Conductor Main Diameter, 0.162 in - 0.332 in Conductor Tap Diameter |
| Temperature Rating | 90 deg C |
| Standard & Approvals | ANSI C119.4 Approved, RoHS Compliant, RUS Accepted |
| Application | For Combinations of Aluminum to Aluminum or Aluminum to Copper Code Conductors |
| Type | Wide-Range |
| Tap Size | 2 - 6 AWG ACSR |
| Shape | H |
| Dimensions | 1-13/16 in L |
| Conductor Type | ACSR/Stranded/Solid/Aluminum/Copper |
| Catalog ID | BLKWR379 |
