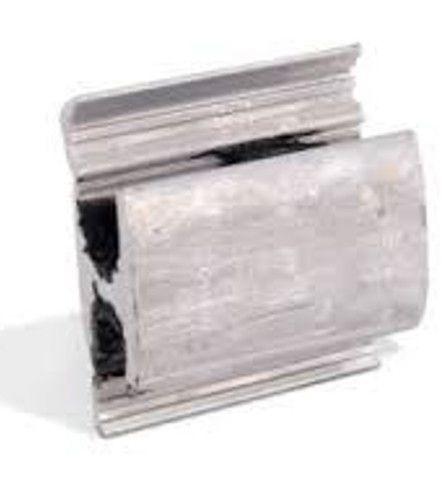

Blackburn® WR9 WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid Main/Run, 8 to 14 AWG Stranded/Solid Tap, Aluminum

Selected Blackburn® WR9 WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid Main/Run, 8 to 14 AWG Stranded/Solid Tap, Aluminum
Blackburn® WR9 WR Series Type H Wide Range Compression Tap Connector, Figure H Shape, 6 to 3 AWG ACSR, 6 to 2 AWG Stranded, 4 to 1 AWG Solid Main/Run, 8 to 14 AWG Stranded/Solid Tap, Aluminum

Documents

Short Description

Blackburn® is a complete and reliable line of overhead, grounding, mechanical and compression connectors that respond to a broad range of construction needs.

Features

  • Made of 1350 aluminum alloy for high-strength and high-conductivity
  • Standard compression tools and dies install all sizes - no special tools needed
  • Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape
  • Fold-in tabs provide tab interlock as tool closes
  • Pre-filled with oxide inhibitor held captive in the rib/connection area
  • Compression/crimp connection
  • 2 conductors
  • Tap - 8-14 AWG stranded, 8-14 AWG solid
  • Conductor range - main - 3 - 6 ACSR, 2 - 6 AWG stranded, 1 - 4 AWG solid

Specification

Material
Aluminum
Shape
H
Specifications
5/8 or BG Die Code, 0.184 in - 0.292 in Conductor Main Diameter
Tap Size
8 - 14 Stranded
Temperature Rating
90 deg C
Type
Wide-Range
Application
For Combinations of Aluminum to Aluminum or Aluminum to Copper Code Conductors
Standard & Approvals
ANSI C119.4 Approved, RoHS Compliant, RUS Accepted
Conductor Type
ACSR/Stranded/Solid/Aluminum/Copper
Dimensions
13/16 in L
