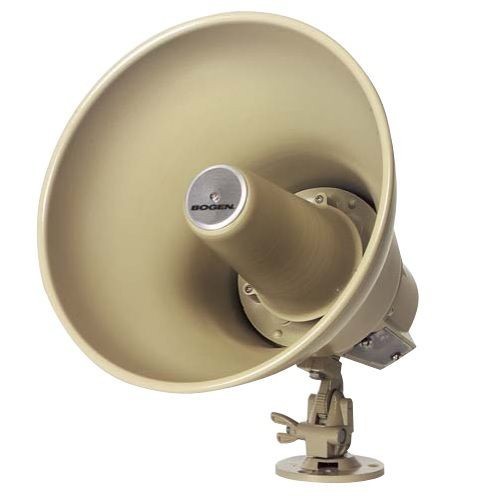

Bogen® SPT15A Paging Reentrant Horn Loudspeaker, 9 in OAW x 9-1/4 in OAH, Brown Metal Enclosure
Bogen® SPT15A Paging Reentrant Horn Loudspeaker, 9 in OAW x 9-1/4 in OAH, Brown Metal Enclosure
SKU: BOGSPT15A
Manufacturer Part Number: SPT15A
UPC: 765368360332
Short Description
Features
- High intelligibility and efficiency ideal for both one-way and talk back applications
- Weatherproof all metal construction
- Tap settings for 70 V: 15, 7.5, 3.8, 1.8, 0.9 W; for 25 V: 15, 7.5, 1.8, 0.94, 0.46 W
- Rotary tap impedance selector on SPT15A
- Tilt-and swivel base for easy positioning
- Screw terminals make installation fast and easy
- All-purpose mounting bracket
- Self-aligning, field-replaceable diaphragm
- Mocha enamel finish
- Mountable to I-beam flange using BOGEN® BC1 beam clamp
- Mountable to electrical box using BOGEN® HSES10 mounting strap
- Terminal cover (TCSPT1) allows connection of conduit fittings to horn speakers
- 110 deg dispersion
- 121 dB at four feet on axis with 15 W input at 1000 Hz
- 25 VAC at 15, 7.5, 1.8, 0.94, 0.46 W, 70 VAC at 15, 7.5, 3.8, 1.8, 0.9 W impedance selector switch settings
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Overall Width | 9 in |
| Overall Height | 9-1/4 in |
| Maximum Wattage Rating | 15 W |
| Frequency Rating | 275 to 14 kHz |
| Application | For indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals and recreational areas |
| Type | Paging Reentrant |
| Sound Level | 121 dB |
| Sensitivity | -22 dBm |
| Enclosure Material | Metal |
| Enclosure Color | Brown |
| Catalog ID | BOGSPT15A |
