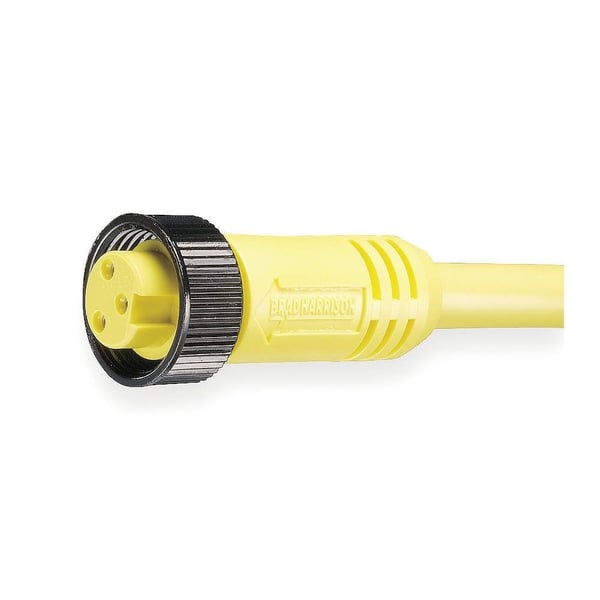

Brad® Mini-Change® Molex® 103000A01F060 130006 A-Size Single Ended Cordset, Straight Female x Pigtail Connector, 1.83 m L Cable, 3 Poles, Single Keyway

Selected 103000A01F060Brad® Mini-Change® Molex® 103000A01F060 130006 A-Size Single Ended Cordset, Straight Female x Pigtail Connector, 1.83 m L Cable, 3 Poles, Single Keyway
103000A01F060Brad® Mini-Change® Molex® 103000A01F060 130006 A-Size Single Ended Cordset, Straight Female x Pigtail Connector, 1.83 m L Cable, 3 Poles, Single Keyway

Documents

Short Description

Brad® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Features

  • This sensor cable comes with a yellow PVC jacket, gold-plated over nickel copper alloy contacts and black epoxy coated zinc coupling nut
  • Threaded coupling style
  • IP67 prevents the entry of water during temporary submersion at a limited depth
  • Female-pigtail gender
  • 3 pole
  • Single keyway
  • 10.41 mm dia cable
  • Patented, Quad Beam™ socket contact with stainless steel sleeve
  • Maintains consistent pressure on the male pin to ensure optimum conductivity
  • High performance, long-lasting plating that maintains low resistance through many mate /unmate cycles
  • Molded key indicator
  • Easier alignment and mating of connector
  • Provides 100 pounds minimum cable strain relief radiates stress in side-loaded conditions

Specification

Length
1.83 m
Material
PVC
Minimum Order Qty
1
Order Interval
1
Amperage Rating
13 A
Catalog ID
WOO103000A01F060
Color
Yellow
Conductor Size
16 AWG
End Connection Type
Straight Female x Pigtail
Series
130006
Temperature Rating
-20 to 105 deg C
Type
A Size Single Ended STOOW
Voltage Rating
600 VAC
Standard & Approvals
UL E152210 Listed, CSA LR6837 Certified
