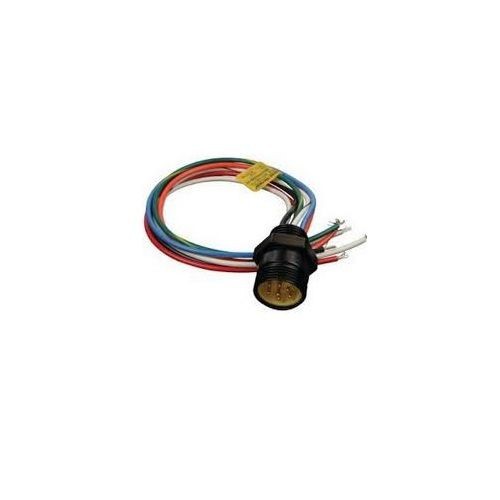

Brad® Mini-Change® 2R7006A20A120 130014 B-Size Receptacle Cordset, 600 VAC/VDC, Straight Male x Single Ended (Pigtail) End Connection, 0.305 m L, 16 AWG Conductor, PVC

Selected Brad® Mini-Change® 2R7006A20A120 130014 B-Size Receptacle Cordset, 600 VAC/VDC, Straight Male x Single Ended (Pigtail) End Connection, 0.305 m L, 16 AWG Conductor, PVC
Brad® Mini-Change® 2R7006A20A120 130014 B-Size Receptacle Cordset, 600 VAC/VDC, Straight Male x Single Ended (Pigtail) End Connection, 0.305 m L, 16 AWG Conductor, PVC

Short Description

The Brad Harrison® Mini-Change® connector family is designed with a variety of configurations and advanced features to meet virtually every connector requirement. Available in 2- through 19-pole configurations, straight or 90 degree connectors and receptacles, lighted or non-lighted connectors, and more. High performance Brad Harrison Mini-Change connectors feature gold over palladium/nickel plating for a longer-lasting solution. Plus, only Brad Harrison MiniChange Connectors are designed with an epoxy coated coupling nut, providing a minimum of 500 hours of corrosion resistance – no other miniature connector comes close. Using Brad Harrison Mini-Change connector products, wiring will never been easier, or easier to maintain. To ensure optimal connectivity and a low-resistance connection, the Quad Beam™ female contact maintains constant pressure on the male pin. To keep away moisture, their moisture resistant design and seal construction provides NEMA 6P and IP 68 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme vibration. And our Mini-Change connector products continue to evolve, so there will never be a better selection or choice than the Mini-Change connectors from Brad Harrison.

Features

  • Higher durometer PVC nose
  • Polarization key indicator
  • Patented, Quad-Beam™ gold over nickel plated socket contact with stainless steel sleeve
  • Black epoxy coated coupling nut
  • Integral strain relief
  • Sealed to an IP67, NEMA 6P rating
  • Fillerless cable

Specification

Length
0.305 m
Material
PVC
Minimum Order Qty
1
Order Interval
1
Color
Yellow
Conductor Size
16 AWG
Voltage Rating
600 VAC/VDC
Amperage Rating
8 A
End Connection Type
Straight Male x Single Ended (Pigtail)
Catalog ID
WOO2R7006A20A120
Standard & Approvals
UL File No. E152210, CSA File No. LR6837
Application
Pumps, Solar Panels, Industrial Heaters, Linear Position Transducers, Load Cells, Industrial Refrigeration Systems
Type
B-Size Receptacle
Temperature Rating
-20 to 105 deg C
Series
130014
