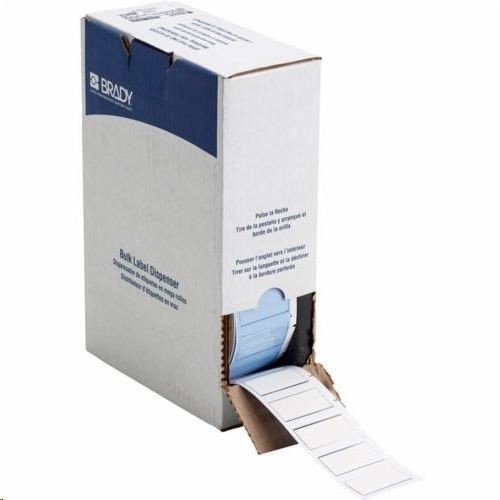

Brady® BM71-500-175-342 PermaSleeve® Wire Marking Sleeve, 4.75 to 11.43 mm Wire, 21.62 mm L x 44.83 mm W, B-342 Polyolefin
Brady® BM71-500-175-342 PermaSleeve® Wire Marking Sleeve, 4.75 to 11.43 mm Wire, 21.62 mm L x 44.83 mm W, B-342 Polyolefin
SKU: BRABM71-500-175-342
Manufacturer Part Number: BM71-500-175-342
UPC: 662820927709
Features
- These sleeves are suitable for use in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Thermal transfer printing technology
- Irradiated polyolefin heat shrink tubing
- 3:1 shrink
- Matte finish
- Self-extinguishing
- Recommended for R6600, R4300, R4502S, R6700 and R5000 ribbons
- 8 - 1 ga wire
- Maximum 7 line text for font 2
- Maximum 41 characters per line for font 2
Specification
| Marker Color | White |
|---|---|
| Material | B-342 Polyolefin |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Series | PermaSleeve® |
| Suitable For Use With | BMP71 Label Printer |
| Temperature Rating | -67 to 275 deg F |
| Width | 44.83 mm |
| Wire Size | 4.75 to 11.43 mm |
| Application | For wire identification and insulation purposes |
| Standard & Approvals | ASTM E162/E662, ISO Certified, SAE-AMS-DTL-23053/5, MIL-STD-202, RoHS 2005/618/EC, UL 224 |
| Catalog ID | BRABM71-500-175-342 |
| Length | 21.62 mm |
