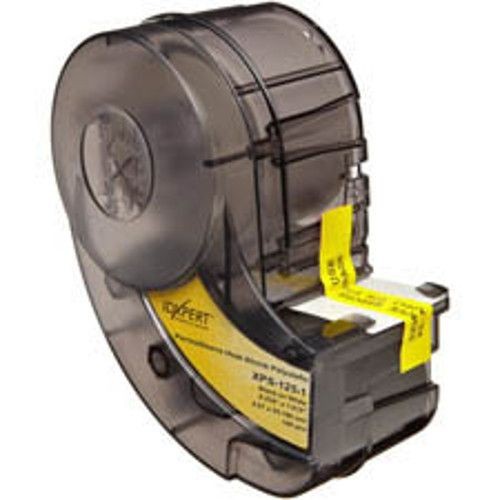

Brady® IDXPERT® PermaSleeve® Wire Marker Sleeve, 0.046 to 0.11 in Wire, Black on White, Polyolefin

Selected XPS-125-1Brady® IDXPERT® PermaSleeve® Wire Marker Sleeve, 0.046 to 0.11 in Wire, Black on White, Polyolefin
XPS-125-1Brady® IDXPERT® PermaSleeve® Wire Marker Sleeve, 0.046 to 0.11 in Wire, Black on White, Polyolefin

Documents

Short Description

Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification

Features

  • Heat shrinkable, With 3:1 shrink ratio, Self extinguishing, Made of B-342 polyolefin material
  • Chemical, corrosion, fade, humidity, smear, smudge, UV, weather resistant, full-circle insulating sleeves
  • Thermal transfer print method
  • Excellent cold-weather performance
  • 22 - 16 AWG
  • Sleeves are kitted style (individually pre-cut)
  • 0.125 in supplied Dia
  • Matte finish
  • 100 markers per cartridge
  • Recommended printer series IDXPERT™ printer

Specification

Length
1.015 in
Material
Polyolefin
Series
IDXPERT® PermaSleeve®
Temperature Rating
-67 to 275 deg F
Width
0.235 in
Wire Size
0.046 to 0.11 in Dia
Application
For Panel Identification, Wire and Cable Marking
Standard & Approvals
ASTM E162, ASTM E662, SAE-AMS-DTL 23053/5 Class 1, SAE-AS-81531, MIL-STD-202, RoHS compliant, UL Recognized
Color
Black on White
