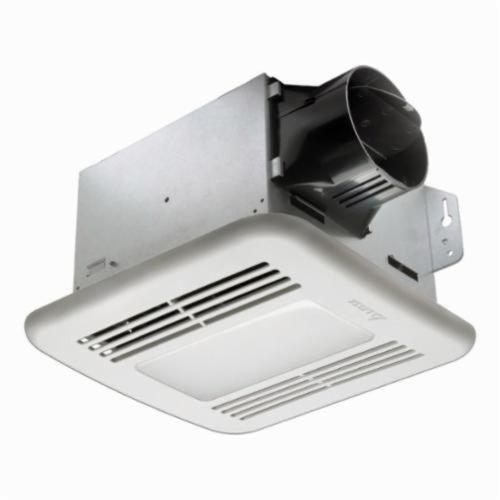

Breez GBR80LED GreenBuilder Ventilation Ceiling Exhaust Fan With LED Light, 80 cfm, 4 in Dia Duct, 11 W, 120 VAC, 0.33 A, Domestic
Selected GBR80LEDBreez GBR80LED GreenBuilder Ventilation Ceiling Exhaust Fan With LED Light, 80 cfm, 4 in Dia Duct, 11 W, 120 VAC, 0.33 A, Domestic
Breez GBR80LED GreenBuilder Ventilation Ceiling Exhaust Fan With LED Light, 80 cfm, 4 in Dia Duct, 11 W, 120 VAC, 0.33 A, Domestic
SKU: DBZGBR80LED
Manufacturer Part Number: GBR80LED
Short Description
Delta BreezGreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a CFL or LED light option as well as humidity sensing option with continuous low speed control. BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements, all at an affordable price.
Features
- Energy Star® qualified with innovative brushless DC motor technology
- Perfectly quiet operation at less than 0.8 sones
- UL approved for ceiling and wall mount installation
- Annual energy cost for 24/7 full speed operation is approximately $10.95
- Low noise ceiling/wall mount ventilating fan rated for continuous running
- DC Brushless motor engineered to run continuously
- Motor equipped with thermal cutoff fuse
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers OFF when impeller is locked abnormally
- Single speed fan
- Self-compensating motor speed for intended airflow when static pressure is encountered
- Grille - attaches directly to housing with torsion springs
- Detachable 4 in diameter metal duct adapter
- Built-in backdraft damper
- Easy installation
- Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
- Energy efficiency at 7.2 cfm/W | Motion sensor
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grille Length | 11 in |
| Housing Height | 5-3/4 in |
| Mounting Type | Flush |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | White |
| Domestic/Import | Domestic |
| Duct Diameter | 4 in |
| Voltage Rating | 120 VAC |
| Catalog ID | DBZGBR80LED |
| Amperage Rating | 0.33 A |
| Video | https://youtu.be/nVe62AnZ34g |
| Humidity Sensing | Yes |
| Housing Width | 8 in |
| Housing Material | Galvanized Steel |
| Housing Length | 8-1/4 in |
| Grille Width | 11 in |
| Grille Material | ABS |
| Flow Rate | 80 cfm |
| Standard & Approvals | cULus Listed, California Title 24 Compliant, Energy Star Certified, Meets ASHRAE 62.2 Requirements, ISO 9001, UL Listed, HVI Certified |
| Type | Ventilation |
| Series | GreenBuilder |
| Power Rating | 11 W |
