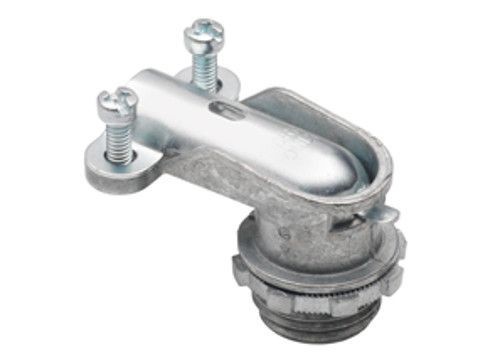

Bridgeport® 804-DC2 Non-Insulated Throat Conduit Connector, 1/2 in Trade, 3/4 to 7/8 in Cable Openings, For Use With MC Cable and 1/2 in Flexible Metal Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth

Selected Bridgeport® 804-DC2 Non-Insulated Throat Conduit Connector, 1/2 in Trade, 3/4 to 7/8 in Cable Openings, For Use With MC Cable and 1/2 in Flexible Metal Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth
Bridgeport® 804-DC2 Non-Insulated Throat Conduit Connector, 1/2 in Trade, 3/4 to 7/8 in Cable Openings, For Use With MC Cable and 1/2 in Flexible Metal Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth

Documents

Features

  • 1/2 in knockout
  • Single cable opening
  • 5/8 in throat diameter
  • Furnished with 2-way phillips/slotted head screw

Specification

Material
Die Cast Zinc
Trade Size
1/2 in
Type
Non-Insulated Throat
Dimensions
1-5/8 in L x 1-3/4 in W
Angle
90 deg
Diameter
5/8 in
Finish
Ball Burnished/Mirror Smooth
Cable Openings
3/4 - 7/8 in
Standard & Approvals
UL 514B Listed, UL E20534, Federal Specification A-A-50552, NEMA FB-1, CSA LR39354 Certified, RoHS Compliant, REACH Complaint
Suitable For Use With
MC Cable, 1/2 in Flexible Metal Conduit
