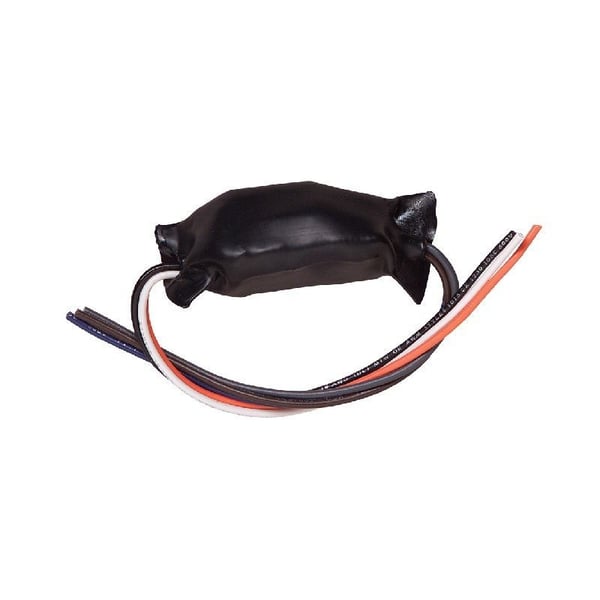

BRK® RM4 Smart Relay, 120 VAC, 0.02 A, 15 A at 120 VAC/30 VDC, Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530
BRK® RM4 Smart Relay, 120 VAC, 0.02 A, 15 A at 120 VAC/30 VDC, Specifications Met: CSA 6.19, UL 217, 2034, 539, ULC S-531, ULCS-530
SKU: BRKRM4
Manufacturer Part Number: RM4
UPC: 029054000576
Documents
Features
- Up-to 18 units of first alert or BRK smoke, CO and heat alarms. maximum of 12 smoke alarms
- Form-C contacts that switch between normally open and closed contacts
Specification
| Humidity | 10% to 90% |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.02 A |
| Catalog ID | BRKRM4 |
| Color | Black |
| Contact Rating | 15 A at 120 VAC/30 VDC |
| Dimensions | 3-1/2 in L x 1-1/2 in H |
| Specifications | 60 Hz |
| Suitable For Use With | BRK Smoke and Heat Alarms and Smart interconnect Break CO Alarms |
| Temperature Rating | 40 to 100 deg F |
| Voltage Rating | 120 VAC |
| Application | For used to control auxiliary devices using the interconnect signal from BRK smokes, CO's and heat alarms |
| Standard & Approvals | CSA6.19, UL217, UL2034, UL539,ULC S-531, ULCS-530 |
