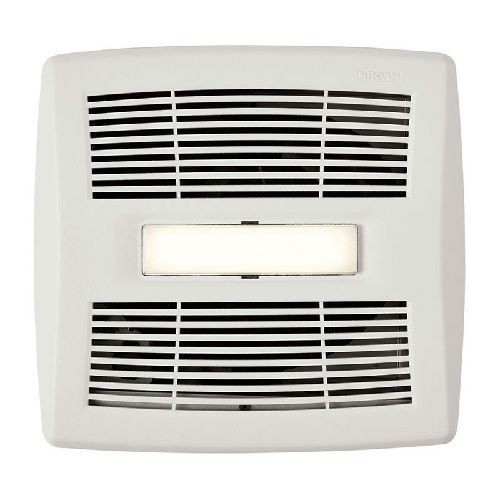

Broan® AE80BL InVent™ Single Speed Fan/Light, 80 cfm, 4 in Dia Duct, 26.9 W, 120 VAC, 0.5 A, 1.5 Sones

Selected BROAE80BL
BROAE80BL

Documents

Short Description

This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.

Features

  • 80 cfm reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 75 sq ft, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side - no attic access required
  • With our TrueSeal™ damper technology, InVent™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • EzDuct™ connector can be installed room-side with no attic access required, fan housing connection have never been easier
  • UL listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Includes 11 W, 3000K, integrated LED module for energy efficiency
  • 11-3/4 in L x 12-1/2 in W white polymeric grill
  • 2 x 6 in minimum construction space required
  • 26.9 W Fixture
  • (1) LED lamp
  • 800 lm light output
  • 3000 K color temperature
  • 80 CRI

Specification

Frequency Rating
60
Grille Material
Polymer
Housing Material
Galvanized Steel
Housing Width
10
Mounting Type
Ceiling
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.5 A
Catalog ID
BROAE80BL
Color
White
Flow Rate
80
Voltage Rating
120 VAC
Grille Length
11/3/2004 12:00:00 AM
Grille Width
12/1/2002 12:00:00 AM
Housing Height
5/3/2004 12:00:00 AM
Housing Length
9/1/2004 12:00:00 AM
Type
Single Speed
Series
InVent™
Power Rating
26.9
Duct Diameter
4
Motion Sensing
No
Humidity Sensing
No
Standard & Approvals
cUL Listed, Energy Star® Qualified, UL Listed
