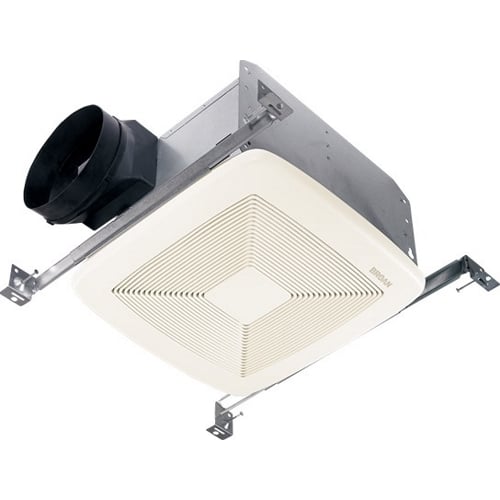

Broan® Ultra Silent™ QTXE150 Ventilation Fan, 150 cfm, 6 in Dia Duct, 51.3 W, 120 VAC, 0.5 A, 1.4 sones, Domestic
Broan® Ultra Silent™ QTXE150 Ventilation Fan, 150 cfm, 6 in Dia Duct, 51.3 W, 120 VAC, 0.5 A, 1.4 sones, Domestic
SKU: BROQTXE150
Manufacturer Part Number: QTXE150
UPC: 026715163793
Short Description
Features
- Motor engineered for continuous operation
- Hanger bars for easy, fast and universal installation in all types of construction
- Plug-in, permanently lubricated motor engineered for continuous operation
- Dynamically balanced centrifugal blower wheel for quiet and efficient performance
- Low rpm for quiet operation blower
- Airflow smoothing baffles reduce turbulence
- 7-5/8 in height allows for 2 x 8 in ceiling installations
- Sturdy, easy, 4-point mounting directly to joist
- Includes unique spacer (patent pending) for mounting to engineered "I" joists
- Includes hanger bars to position housing anywhere between 16 to 24 in on-center joists
- Can be mounted in ceilings upto 12/12 pitch
- Innovative design the result of extensive research with designers and consumers
- Ultra quiet, high performance bath fan with a modern styled grille
- Horizontal duct direction
- 150 cfm at 0.1 in, 120 cfm at 1/4 in airflow rate
Specification
| Voltage Rating | 120 VAC |
|---|---|
| Color | White |
| Housing Height | 7-5/8 in |
| Housing Width | 11-3/8 in |
| Duct Diameter | 6 in |
| Humidity Sensing | No |
| Series | QTXE |
| Mounting Type | Ceiling |
| Housing Length | 10-1/2 in |
| Domestic/Import | Domestic |
| Housing Material | Galvanized Steel |
| Grille Width | 14 in |
| Grille Material | Polymer |
| Motion Sensing | No |
| Sones | 1.4 sones |
| Current/Amps | 0.5 A |
| Wattage Consumption | 51.3 W |
| Flow Rate | 150 cfm |
| Grille Length | 13 in |
