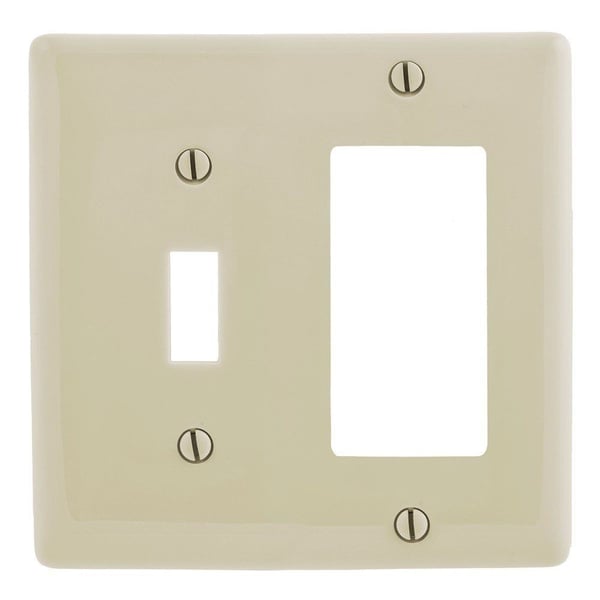

Bryant Electric NP126AL Standard Combination Wallplate, 2 Gangs, Almond, 4.63 in H x 4.68 in W, Nylon

Selected Bryant Electric NP126AL Standard Combination Wallplate, 2 Gangs, Almond, 4.63 in H x 4.68 in W, Nylon
Bryant Electric NP126AL Standard Combination Wallplate, 2 Gangs, Almond, 4.63 in H x 4.68 in W, Nylon

Documents

Short Description

Our line of nylon wallplates features larger standard sized wallplates to provide extra coverage to hide rough box opening, improved aesthetics, greater strength, impact resistance, along with excellent clean ability in all different types of environments.

Features

  • Standard size is 1/8 in larger to give you extra coverage to hide rough box openings
  • Curved corners for improved aesthetics, for use in any application
  • Reinforcement ribs for extra strength
  • Captive screw feature holds mounting screw in place for quick and easy installation
  • High-impact, self-extinguishing nylon material, which is virtually unbreakable
  • Smooth, easy to clean finish is highly resistant to solvents and cleaning solutions, providing long life in the harshest environments
  • Steel painted, slotted head mounting screws
  • Protection against contact of live terminals and wiring
  • Provides finished look to installation
  • -40 to 80 deg C operating temperature
  • Screw mounting

Specification

Material
Nylon
Mounting
Threaded
Number of Gangs
2
Number of Ports
2
Orientation
Vertical
Minimum Order Qty
1
Order Interval
1
Catalog ID
HWSNP126AL
Color
Almond
Construction
Molded
Cutout
0.925 in H x 0.406 in W Toggle, 2.64 in H x 1.32 in W Decorator
Finish
Smooth
Thickness
1/4 in
Type
Standard
Standard & Approvals
UL 514D, UL File No. E31999, E92074, CSA C22.2 No. 42.1, CSA File No. 1733174
Size
4.63 in H x 4.68 in W
