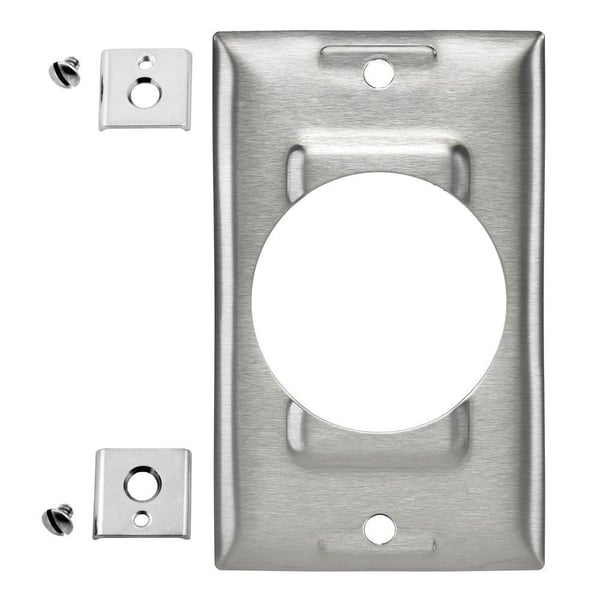

Bryant Electric SS750 Standard Wallplate, 1 Gangs, 4.5 in H x 2.87 in W, 302/304 Stainless Steel

Selected Bryant Electric SS750 Standard Wallplate, 1 Gangs, 4.5 in H x 2.87 in W, 302/304 Stainless Steel
Bryant Electric SS750 Standard Wallplate, 1 Gangs, 4.5 in H x 2.87 in W, 302/304 Stainless Steel

Documents

Short Description

Hubbell offers only the best grade of stainless steel type 302/304, which is 18% chromium, 8% nickel, and non-magnetic providing superior corrosion resistance versus type 430 stainless steel. When you specify Hubbell wallplates you can be assured of the highest quality materials providing extended life in the most abusive environments.

Features

  • Provides a plush appearance with the durability of metal
  • Protection against contact of live terminals and wiring
  • Provides finished look to installation
  • Protective film helps to prevent scratches and damage
  • Brass and aluminum are lacquer coated to inhibit oxidation
  • For use with 50A Twist-Lock® single receptacles
  • Screw mounting

Specification

Material
302/304 Stainless Steel
Mounting
Threaded
Number of Gangs
1
Number of Ports
1
Orientation
Vertical
Size
4.5 in H x 2.87 in W
Thickness
0.035 in
Type
Standard
Application
Commercial and Industrial Applications
Standard & Approvals
UL 514D, UL File No. E31999, E92074, CSA C22.2 No. 42.1, CSA File No. 1733174
Construction
Stamped
Cutout
2.66 in H x 1.34 in W Duplex Receptacle
Finish
Smooth Satin
