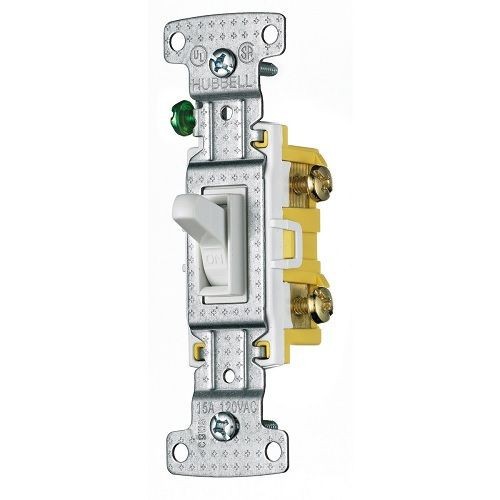

Bryant Electric tradeSELECT® RS115W Toggle Switch, 120 VAC, 15 A, 1/2 hp
Bryant Electric tradeSELECT® RS115W Toggle Switch, 120 VAC, 15 A, 1/2 hp
SKU: HWSRS115W
Manufacturer Part Number: RS115W
UPC: 883778100895
Documents
Features
- Standard toggle switches provide the basic ON/OFF control for home lighting and appliances
- Tough thermoplastic with ultrasonically welded cover and base
- Elongated strap for easier wall box mounting
- Quiet snap action mechanism
- Multiple-drive Slot/Phillips/Robertson head screws
- Hi-visibility yellow base for easy installation
- Grounding
- 2 position
- Indoor dry unless protected by additional means
- Push and side wire connection
- 1800 W power
- Positive snap action
- General purpose
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Wall |
| Number Of Poles | 1 |
| Operating Cycles | 10000 |
| Power Rating | 1/2 hp |
| Terminal Type | Screw |
| Voltage Rating | 120 VAC |
| Application | Residential |
| Standard & Approvals | CSA Certified, UL 20 File No. E3896 Listed |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Color | White |
| Environmental Conditions | -20 to 60 deg C |
