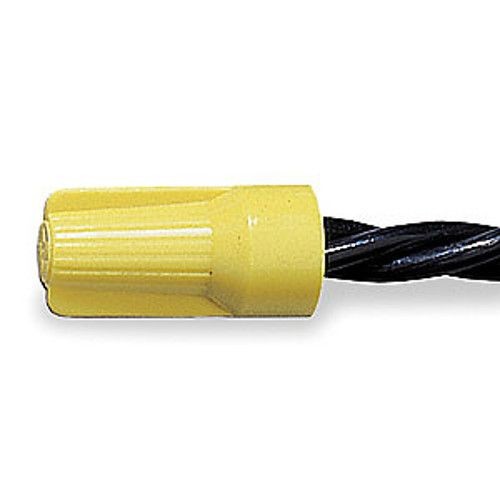

BUCHANAN B-CAP® B1-1 Flame-Retardant Wire Connector, Classic Fin/Twist On Shell, Live Action/Square Wire Spring, 22 to 10 AWG Solid/Stranded Wire, Polypropylene
BUCHANAN B-CAP® B1-1 Flame-Retardant Wire Connector, Classic Fin/Twist On Shell, Live Action/Square Wire Spring, 22 to 10 AWG Solid/Stranded Wire, Polypropylene
SKU: BUCB1-1
Manufacturer Part Number: B1-1
UPC: 781789451886
Documents
Short Description
Features
- Low profile design gets you into tight spaces and hard-to-reach spots comfortably
- Slim, classic fin design provides secure grip for extra leverage on maximum wire combinations
- Square-wire spring threads directly onto conductors for fast, secure connections
- Deep skirt helps protect against flash-over
- Live-action spring expands to accept wire shape and size
- No pre-twisting required
- Unique, space-saving profile is perfect for old work or shallow boxes
- 1000 V maximum in fixtures and signs
- Green-B designed for making ground connections and bonding non-metallic sheathed cable
- Easily removed for repeat usage on same size or larger wire combinations
- 2 - 6 conductors, (3) 20 AWG - (3) 12 AWG wire combinations
- 100/Box
Specification
| Material | Nylon Shell and Steel Spring |
|---|---|
| Minimum Order Qty | 100 |
| Order Interval | 100 |
| Catalog ID | BUCB1-1 |
| Color | Yellow |
| Dimensions | 0.5 in Dia x 0.96 in H |
| Finish | Zinc Plated |
| Series | B1 |
| Shell Style | Classic Fin |
| Specifications | 1/2 in for 16 AWG, 5/8 in for Smaller AWG Wire Strip |
| Spring Type | Live-Action |
| Temperature Rating | 221 deg F |
| Type | Flame-Retardant |
| Voltage Rating | 600 VAC |
| Wire Size | 22 to 10 AWG |
| Wire Type | Aluminum/Copper |
| Application | For Insulating or Joining One or More Conductors |
| Standard & Approvals | C22.2 #188 CSA Certified, IEC 998-2-4, RoHS Complaint, UL 94V-2 Flammability Rating, UL 486 C Listed |
