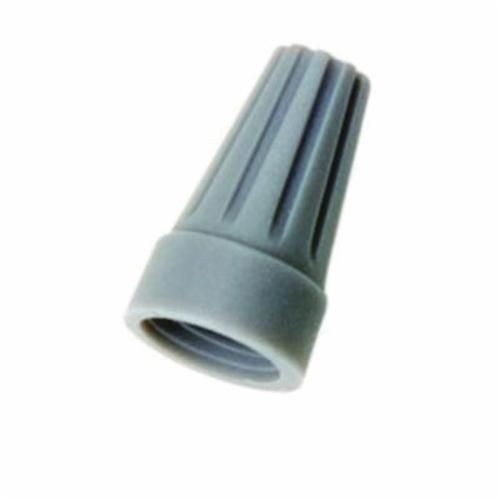

BUCHANAN WIRETWIST™ WT1-1 Wire Connector, Ribbed/Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Stranded Wire, Polypropylene
BUCHANAN WIRETWIST™ WT1-1 Wire Connector, Ribbed/Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Stranded Wire, Polypropylene
SKU: BUCWT1-1
Manufacturer Part Number: WT1-1
UPC: 781789610009
Documents
Short Description
Features
- Five color-coded models cover common construction wire ranges
- Ribbed cap provides positive grip for fast, easy installation
- Fixed, square-wire spring threads itself creating a secure pressure grip
- Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection
- Suitable for use with ACAM, Wire-nut® wire connector sockets tools
- 1000 V maximum in fixtures and signs
- 1 - 5 conductors, (3) 22 AWG - (2) 16 AWG wire combinations
- 100/Box
Specification
| Material | Polypropylene Shell and Steel Spring |
|---|---|
| Minimum Order Qty | 100 |
| Order Interval | 100 |
| Catalog ID | BUCWT1-1 |
| Color | Gray |
| Dimensions | 0.34 in Dia x 0.61 in H |
| Finish | Zinc Plated |
| Temperature Rating | 221 deg F |
| Type | Flame-Retardant |
| Voltage Rating | 300 VAC |
| Wire Type | Aluminum/Copper |
| Application | For Insulating or Joining One or More Conductors |
| Standard & Approvals | C22.2 #188 CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed |
| Wire Size | 22 to 14 AWG |
| Spring Type | Fixed/Square Wire |
| Specifications | 1/4 in Solid, 5/16 in Stranded Wire Strip |
| Shell Style | Ribbed |
| Series | WT1 |
