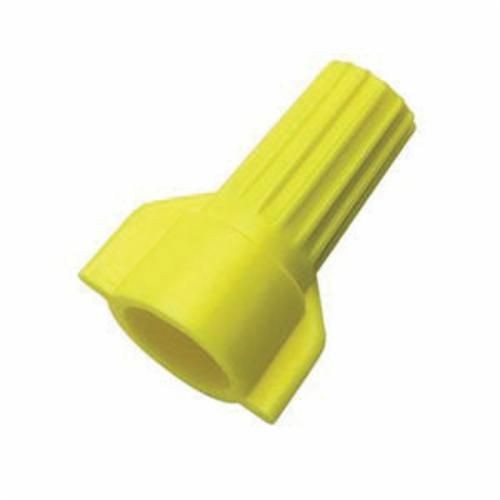

BUCHANAN WINGTWIST™ WT51-B Wire Connector, Contoured Winged/Twist On Shell, Fixed/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, Polypropylene
BUCHANAN WINGTWIST™ WT51-B Wire Connector, Contoured Winged/Twist On Shell, Fixed/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, Polypropylene
SKU: BUCWT51-B
Manufacturer Part Number: WT51-B
UPC: 781789611013
Documents
Short Description
Features
- Four color-coded models cover common construction wire ranges, green model designed for ground connections
- Unique contoured wing design acts as built-in wrench providing maximum torque with minimum effort
- Fixed, square-wire spring threads itself creating a secure pressure grip
- Deep, wide-throated skirt protects against flash-over and turned-back strands for maximum dielectric protection
- No pre-twisting required
- Flexible shell expands for smooth, progressive tightening providing dependable connections
- Spin-twist® wire connector socket application tool
- 1000 V maximum in fixtures and signs
- 1 - 6 conductors, (2) 20 AWG - (3) 10 AWG Solid wire combinations
- 500/Bag
Specification
| Material | Thermoplastic Polyester Shell and Steel Spring |
|---|---|
| Series | WT51 |
| Shell Style | Contoured Winged |
| Specifications | 3/8 in Wire Strip |
| Spring Type | Fixed/Square Wire |
| Temperature Rating | 221 deg F |
| Type | Flame-Retardant |
| Voltage Rating | 600 VAC |
| Wire Size | 18 to 10 AWG |
| Wire Type | Aluminum/Copper |
| Application | For Insulating or Joining One or More Conductors |
| Standard & Approvals | C22.2 #188 CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating, UL 486C Listed |
| Dimensions | 0.52 in Dia x 1.02 in H x 0.73 in W |
| Color | Yellow |
| Finish | Zinc Plated |
