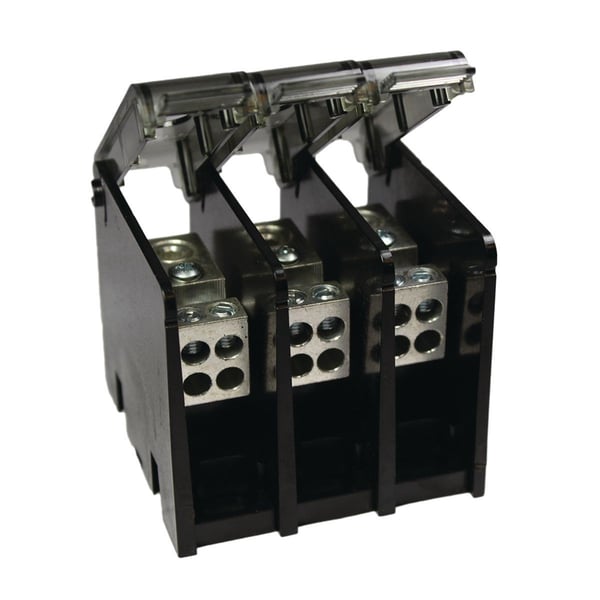

BURNDY® VERSI-POLE BDBMHC145003 Medium Type BDB Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, Aluminum Alloy

Selected BDBLHC163503BURNDY® VERSI-POLE BDBMHC145003 Medium Type BDB Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, Aluminum Alloy
BDBLHC163503BURNDY® VERSI-POLE BDBMHC145003 Medium Type BDB Power Distribution Block, 600 VAC, 380 A, 3 Poles, 4 AWG to 500 kcmil, 14 to 2/0 AWG Wire, Aluminum Alloy

Documents

Short Description

These power distribution blocks are Listed to the power distribution block Standard UL 1953. They contain the same features and characteristics as the non-listed blocks however, these have spacing's that are suitable for installations in most industrial control panel feeder and branch circuits, HVAC systems and Wireways (with optional cover sold separately). They are available in one, two or three-pole configurations. An adder is also available with optional end barrier (sold separately), to allow user customized configurations.

Features

  • Single or dual run connections allow the user to minimize the number of connections required
  • Suitable for use with aluminum or copper conductors providing maximum versatility
  • Range taking designs to accommodate wire sizes up to 600 kcmil
  • High short circuit rating up to 100 kA with proper fusing
  • Meets spacing requirements of industrial control panel standard UL 508A (spacing of 1 in through air and 2 in over surface)
  • 14 to 2/0 AWG tap, 4 AWG to 500 kcmil run wire size
  • Provides capability to create as many poles as required and up to 30 tap conductors accommodated

Specification

Material
Aluminum Alloy
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
380 A
Catalog ID
BURBDBMHC145003
Dimensions
3.25 in H x 5.28 in W x 5 in D
Finish
Electro-Plated Tin
Voltage Rating
600 VAC
Application
Industrial Control Feeder and HVAC System and Wireways Applications
Primary Connections/Pole
1
Secondary Connection/Pole
4
Short Circuit Current Rating
100 kA
Standard & Approvals
RoHS Compliant, CSA Certified, UL 1953, 508A, PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
