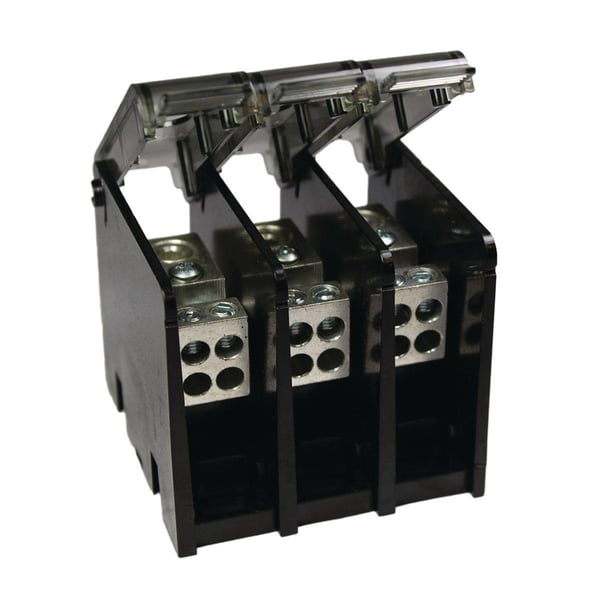

BURNDY® VERSI-POLE™ BDBMHC262/03 BDBMHC Medium Terminal Block Cover, 600 V AC, 350 A, 3 Poles, 14 to 2 AWG, 14 to 2/0 AWG Wire, Aluminum

Selected BURNDY BDBMHC112 03
BURNDY BDBMHC112 03

Documents

Short Description

These Power Distribution Blocks are Listed to the Power Distribution Block Standard UL 1953. They contain the same features and characteristics as the non-Listed blocks however, these have spacing's that are suitable for installations in most industrial control panel feeder and branch circuits, HVAC systems, and Wireways (with optional cover; sold separately). They are available in one, two, or three pole configurations. An Adder is also available with optional End Barrier (sold separately), to allow user customized configurations.

Features

  • Glass filled polycarbonate
  • Suitable for use with aluminum or copper conductors providing maximum versatility
  • Meets spacing requirements of industrial control panel standard UL 508A (spacing of 1 in through air and 2 in over surface)
  • Range taking designs to accommodates wire sizes up to 600 kcmil
  • 14 to 2 AWG tap/14 to 2/0 AWG run
  • High short circuit rating up to 100 kA with proper fusing
  • Single or dual run connections allow the user to minimize the number of connections required

Specification

Secondary Connection/Pole
6
Number Of Poles
3
Short Circuit Current Rating
100 kA
Finish
Electro-Plated Tin
Series
BDBMHC
Type
Medium
Amperage Rating
350 A
Material
Aluminum
Voltage Rating
600 V AC
Dimensions
5 in L x 5.28 in W x 3.25 in H
Primary Connections/Pole
2
Wire Size
14 to 2 AWG, 14 to 2/0 AWG
