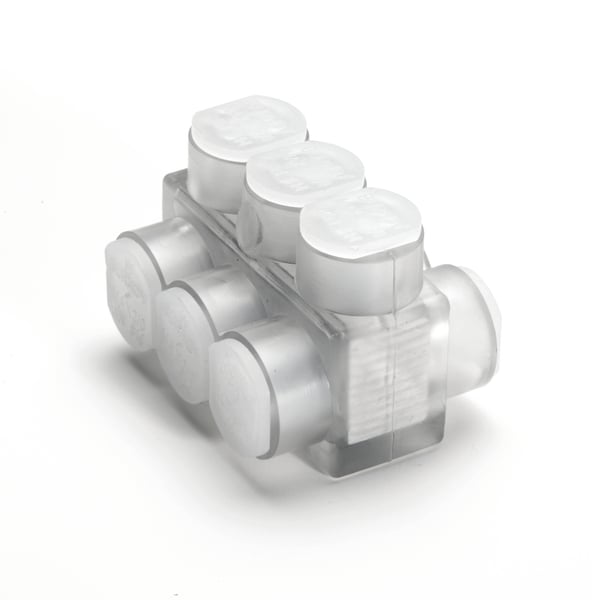

BURNDY® UNITAP™ BIBD2504 2-Sided Entry Multi-Tap Connector, 10 AWG to 250 kcmil Conductor, Copper/Stranded Aluminum Conductor, Aluminum

Selected Data-Spec SheetBURNDY® UNITAP™ BIBD2504 2-Sided Entry Multi-Tap Connector, 10 AWG to 250 kcmil Conductor, Copper/Stranded Aluminum Conductor, Aluminum
Data-Spec SheetBURNDY® UNITAP™ BIBD2504 2-Sided Entry Multi-Tap Connector, 10 AWG to 250 kcmil Conductor, Copper/Stranded Aluminum Conductor, Aluminum

Documents

Short Description

UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.

Features

  • Clear plastisol insulation allows visual confirmation that conductor is properly inserted
  • Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping
  • Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area
  • Range taking reduces number of connectors carried in inventory
  • 4 ports, 4 screw
  • Unplated, inspectable
  • 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG - 250 kcmil stranded copper, 8 AWG - 250 kcmil aluminum

Specification

Material
Aluminum
Series
BIBD
Specifications
5/16 in Hex Key, 275 in lb Torque, Multi-Port
Temperature Rating
194 deg F
Type
Dual Sided Entry
Voltage Rating
600 VAC
Application
For Copper or Stranded Aluminum Conductors, Indoor Use
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed
Conductor Type
Stranded Aluminum/Copper
Dimensions
3.91 in L x 2.64 in W x 2.14 in H
Conductor Size
10 AWG - 250 kcmil
