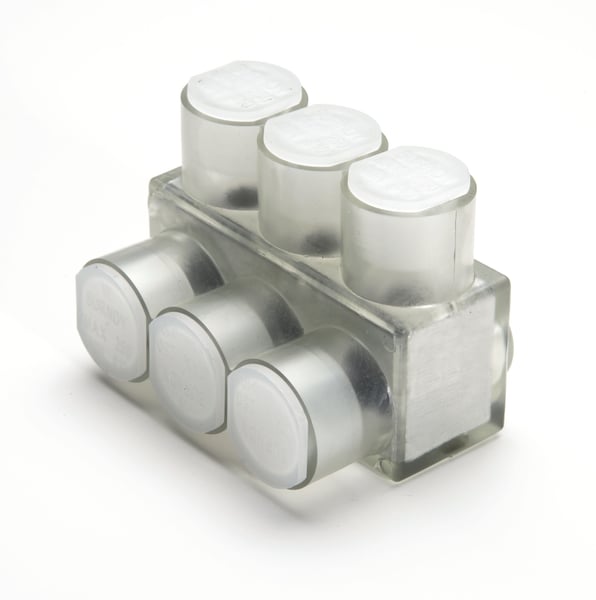

BURNDY® UNITAP™ BIBS43 1-Sided Entry Multi-Tap Connector With Mounting Holes, 14 to 4 AWG Conductor, Copper/Stranded Aluminum Conductor, Aluminum

Selected BURNDY® UNITAP™ BIBS43 1-Sided Entry Multi-Tap Connector With Mounting Holes, 14 to 4 AWG Conductor, Copper/Stranded Aluminum Conductor, Aluminum
BURNDY® UNITAP™ BIBS43 1-Sided Entry Multi-Tap Connector With Mounting Holes, 14 to 4 AWG Conductor, Copper/Stranded Aluminum Conductor, Aluminum

Documents

Short Description

UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.

Features

  • Clear plastisol insulation allows visual confirmation that conductor is properly inserted
  • Clear plastisol covered AL6061-T6 aluminum body saves time, lowers installation costs, eliminates taping
  • Oxide inhibitor pre-installed which inhibits moisture and contaminants from entering the contact area
  • Range taking reduces number of connectors carried in inventory
  • 3 ports, 3 screw
  • Unplated, inspectable
  • 4, 8, 12, 10, 14, 6 AWG stranded copper, 8 - 4 AWG aluminum

Specification

Material
Aluminum
Series
BIBS
Specifications
1/8 in Hex Key, 45 in lb Torque, Multi-Port, 5/8 in Strip
Temperature Rating
194 deg F
Type
Single Sided Entry
Voltage Rating
600 VAC
Application
For Copper or Stranded Aluminum Conductors, Indoor Use
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed
Conductor Size
14 to 4 AWG
Dimensions
1.59 in L x 1.25 in W x 1.25 in H
Conductor Type
Stranded Aluminum/Copper
