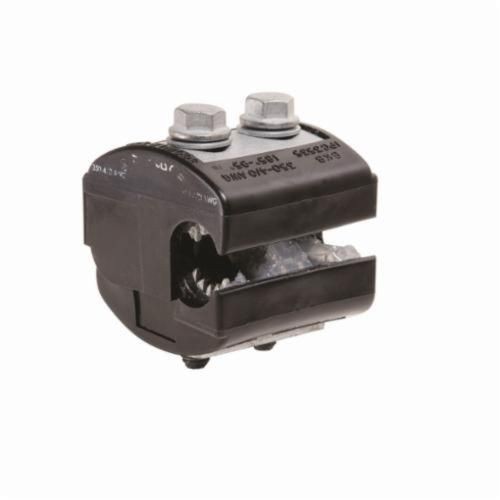

BURNDY® INSULTAP™ BIPC5004/0 Insulation Piercing Connector, 350 to 500 kcmil Aluminum/Copper Conductor, 3/8 in Bolt, Aluminum
BURNDY® INSULTAP™ BIPC5004/0 Insulation Piercing Connector, 350 to 500 kcmil Aluminum/Copper Conductor, 3/8 in Bolt, Aluminum
SKU: BURBIPC5004/0
Manufacturer Part Number: BIPC5004/0
UPC: 781810128756
Documents
Features
- Insulation piercing capability
- Eliminates the need for conductor insulation stripping
- For copper and aluminum conductor combinations
- Insulation piercing design
- Eliminates the need for taping, easy snap-out tabs eliminates the need for taping, easy snap-out tabs
- Easy snap-out tabs eases installation, protects connection from dirt and debris
- Simple bolt-on connection eases installation
- Splice, tap connection type
- 185 - 240 sq-mm (main/primary), 300 - 500 kcmil, 25 - 95 sq-mm (tap/secondary), 4 - 4/0 AWG
- 4/Pack
Specification
| Material | Aluminum |
|---|---|
| Series | BIPC |
| Specifications | 400 in lb Installation Torque, 9/16 in Socket Size |
| Temperature Rating | 90 deg C |
| Voltage Rating | 600 VAC |
| Application | For Splicing and Tapping Aluminum and Copper Conductors |
| Standard & Approvals | AL9CU Rated, CSA Certified, RoHS Compliant, UL 486B Listed |
| Conductor Size | 350 - 500 kcmil |
| Dimensions | 1.59 in L x 2.62 in W x 3.25 in H |
| Bolt Size | 3/8 in - 16 |
| Conductor Type | Aluminum/Copper |
| Finish | Tin Plated |
