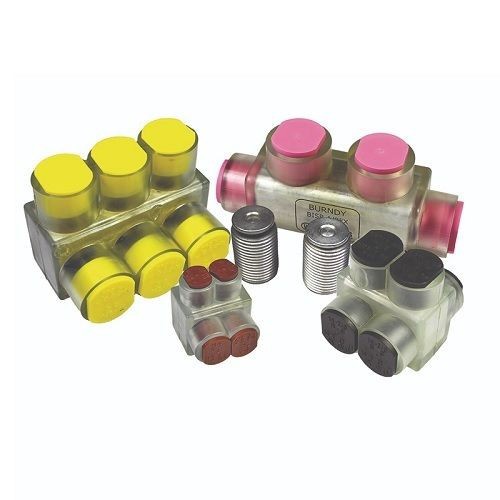

BURNDY® UNITAP™ BISR500FX 2-Port Type 3A BISR In-Line Insulated Splice Reducer, 6 AWG to 373 kcmil, 6 AWG to 500 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
BURNDY® UNITAP™ BISR500FX 2-Port Type 3A BISR In-Line Insulated Splice Reducer, 6 AWG to 373 kcmil, 6 AWG to 500 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
SKU: BURBISR500FX
Manufacturer Part Number: BISR500FX
UPC: 621945440715
Features
- Clear plastisol covered AL6061-T6 aluminum body
- Saves time
- Lowers installation costs
- Eliminates taping
- Oxide inhibitor pre-installed
- Inhibits moisture and contaminants from entering the contact area
- Same sided entry
- Flex conductor rated
- 6 AWG to 373 kcmil copper, 6 AWG to 500 kcmil copper
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURBISR500FX |
| Conductor Type | Aluminum/Stranded Copper |
| Finish | Tin Plated |
| Temperature Rating | -40 to 135 deg C |
| Voltage Rating | 600 VAC |
| Standard & Approvals | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Type | Type 3A BISR Multi-Port |
| Specifications | 2-Ports, 3/8 in Hex Key, Plastisol Insulation |
| Dimensions | 5.25 in L x 1.63 in W x 2.63 in H |
| Conductor Size | 6 AWG to 500 kcmil |
