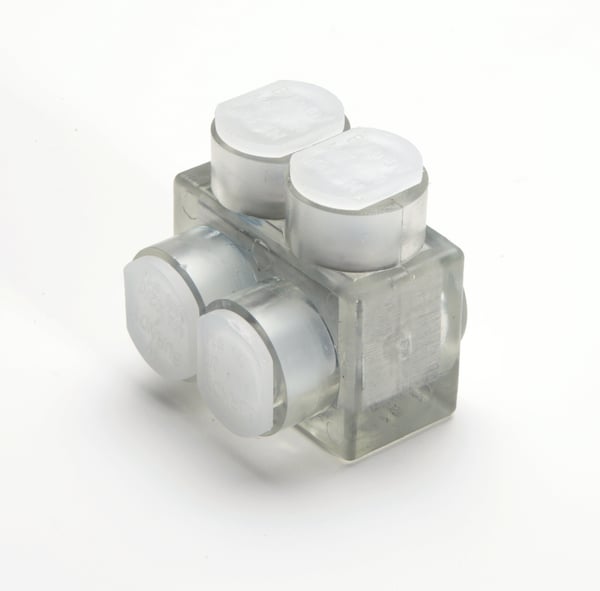

BURNDY® UNITAP™ BIT350 1-Sided Entry Multi-Tap Connector, 10 AWG to 350 kcmil Conductor, Aluminum/Copper Stranded Conductor, Aluminum

Selected BURNDY® UNITAP™ BIT350 1-Sided Entry Multi-Tap Connector, 10 AWG to 350 kcmil Conductor, Aluminum/Copper Stranded Conductor, Aluminum
BURNDY® UNITAP™ BIT350 1-Sided Entry Multi-Tap Connector, 10 AWG to 350 kcmil Conductor, Aluminum/Copper Stranded Conductor, Aluminum

Documents

Short Description

UNITAP™ Clear Insulated Multi-Tap is UL Listed to the UL Wire Connector Standard UL486A-486B and CSA Certified for use with flexible (fine stranded) conductor - with no ferrules required! Featuring color coordinated conductor port and screw port caps making it easy to identify the maximum conductor size accommodated by the connector.

Features

  • Clear plastisol covered aluminum body saves time, lowers installation costs, eliminates taping
  • Clear plastisol insulation allows visual confirmation that conductor is properly inserted
  • Oxide inhibitor pre-installed - inhibits moisture and contaminants from entering the contact area, range-taking - reduces number of connectors carried in inventory
  • Range taking reduces number of connectors carried in inventory
  • Made of AL6061-T6 aluminum
  • 2 ports, 2 screw
  • Unplated, inspectable
  • 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG - 250, 350 kcmil stranded copper, 8 AWG - 250 kcmil aluminum

Specification

Material
Aluminum
Series
BIT
Specifications
5/16 in Hex Key, 275 in lb Torque, Multi-Port, 1-1/8 in Strip
Temperature Rating
90 deg C
Type
Single Sided Entry
Voltage Rating
600 VAC
Application
For Copper or Stranded Aluminum Conductors, Indoor Use
Standard & Approvals
CSA Certified, RoHS Compliant
Conductor Size
10 AWG - 350 kcmil
Dimensions
2.22 in L x 2.32 in W x 2.5 in H
Conductor Type
Stranded Aluminum/Copper
