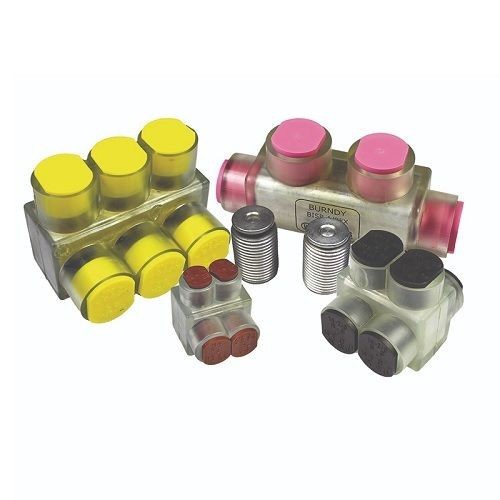

BURNDY® UNITAP™ BIT350FX Type 3A Bit Insulated Multi-Tap Connector, 10 AWG to 350 kcmil, 10 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
BURNDY® UNITAP™ BIT350FX Type 3A Bit Insulated Multi-Tap Connector, 10 AWG to 350 kcmil, 10 AWG to 250 kcmil Aluminum/Copper/Stranded Conductor, Aluminum
SKU: BURBIT350FX
Manufacturer Part Number: BIT350FX
UPC: 621945440029
Documents
Features
- Clear plastisol covered AL6061-T6 aluminum body
- Saves time
- Lowers installation costs
- Eliminates taping
- Oxide inhibitor pre-installed
- Inhibits moisture and contaminants from entering the contact area
- Same sided entry
- Flex conductor rated
- 10 AWG to 350 kcmil aluminum, 10 AWG to 250 kcmil copper
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURBIT350FX |
| Conductor Size | 10 AWG to 350 kcmil |
| Conductor Type | Aluminum/Stranded Copper |
| Dimensions | 2.22 in L x 2.38 in W x 2.5 in H |
| Finish | Tin Plated |
| Specifications | 2-Ports, 5/16 in Hex Key, Plastisol Insulation |
| Temperature Rating | -40 to 135 deg C |
| Voltage Rating | 600 VAC |
| Standard & Approvals | PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Type | Type 3A BIT |
