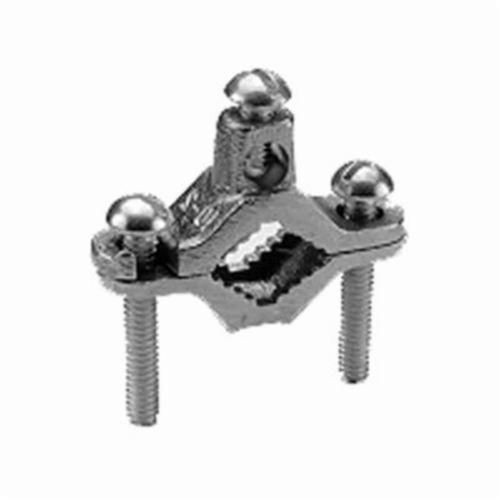

BURNDY® C11N Grounding Clamp, 10 to 3/0 AWG Conductor, Cast Bronze
BURNDY® C11N Grounding Clamp, 10 to 3/0 AWG Conductor, Cast Bronze
SKU: BURC11N
Manufacturer Part Number: C11N
UPC: 781810142288
Documents
Features
- No armored cable
- No ground strap
- 50 in-lb installation torque for pipe and wire clamp
- Zinc plated hardware
- 1/2 to 1 in water pipe
- Made of Cast Bronze
Specification
| Installation | Screw Clamp to Pipe, Screw Wire Connector |
|---|---|
| Material | Bronze |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURC11N |
| Conductor Size | 10 to 3/0 AWG |
| Conductor Type | Copper |
| Dimensions | 2.25 in L x 0.63 in W x 1.81 in H |
| Pipe Size | 1/2 to 1 in |
| Rod Size | 1/2 to 1 in |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
| Connection Type | Cable Parallel to Pipe |
| Outside Diameter | 0.84 to 1.315 in |
| Application | For bare wire, connecting grounding conductor to water pipe or copper tube |
