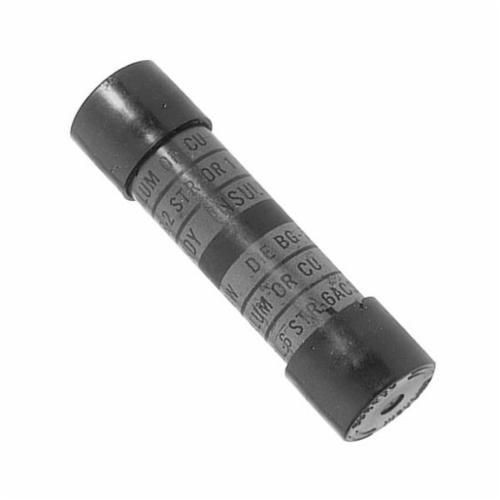

BURNDY® INSULINK™ ES2W2W ES Series Pre-Insulated Service Entrance Compression Sleeve, 3, 4, 2 AWG Solid/Stranded ACSR/Aluminum/Copper Conductor, Die Code: 43317, 2-3/4 in L, Aluminum
BURNDY® INSULINK™ ES2W2W ES Series Pre-Insulated Service Entrance Compression Sleeve, 3, 4, 2 AWG Solid/Stranded ACSR/Aluminum/Copper Conductor, Die Code: 43317, 2-3/4 in L, Aluminum
SKU: BURES2W2W
Manufacturer Part Number: ES2W2W
UPC: 781810141700
Documents
Features
- Pre-insulated service entrance compression connector installed with OH25, OUR840 and MD6 HYTOOL as well as Y35 and Y750 HYPRESS tools
- Polyethylene caps prevent dirt from accumulating in barrel
- Grip cable for easy two - hand installation and seal out moisture
- Aluminum connector is anchored to jacket, assuring the connector is under the die when crimping
- Nylon jacket insulates connector electrically and protects against water and weather, superior color coding, pre-filled with PENETROX joint compound
- Tools, die index- BG element A, tools, die set catalog number, and (number Of crimps)- HYTOOL- OH25 tool, (1), MD6, MD7 tool, (3), MD6, MD7 tool, W-BG die, (1), OUR840 tool, X-NBG die, (1), HYPRESS- Y35 tool, U-BG die, (1), Y750 tool
- End A - 4 swan AWG - 4 swanate AWG ACSR, 4 - 3 AWG stranded copper, 4 - 3 AWG aluminum, 2 AWG copper solid, End B - 4 swan AWG - 4 swanate AWG ACSR, 4 - 3 AWG stranded copper, 4 - 3 AWG aluminum, 2 AWG copper solid
Specification
| Length | 2-3/4 in |
|---|---|
| Material | Aluminum Connector Nylon Jacket Polythene Cap |
| Type | Insulated |
| Application | For Insulated Combinations of Copper, Aluminum, ACSR Compressed Conductors and in Overhead Distribution |
| Standard & Approvals | RoHS Compliant, RUS Accepted |
| Conductor Size | End A - 4 Swan AWG-4 Swanate AWG ACSR/End B - 4 Swan AWG-4 Swanate AWG ACSR |
| Color | Orange |
| Connector Type | Crimp/Compression |
| Die Code | 5/8/2025 12:00:00 AM |
| Conductor Type | Solid/Stranded/ACSR/Aluminum/Copper |
