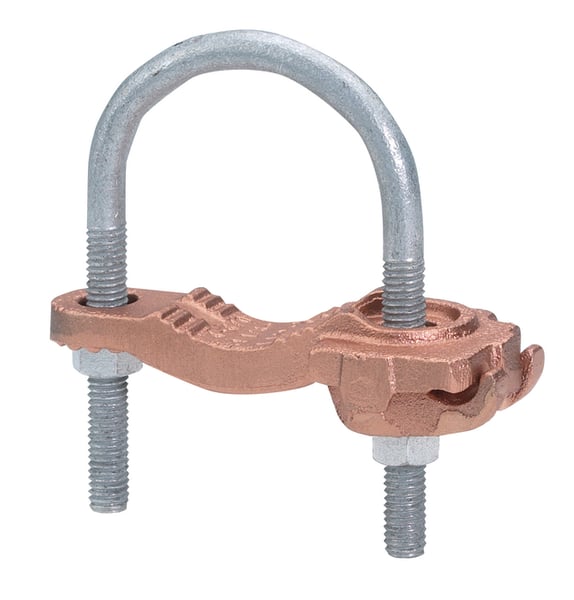

BURNDY® GAR3903 GAR3902 Mechanical Grounding Connector, 1-1/4 to 2 in Rod, 4 to 4/0 AWG Conductor, Copper

Selected Data-Spec SheetBURNDY® GAR3903 GAR3902 Mechanical Grounding Connector, 1-1/4 to 2 in Rod, 4 to 4/0 AWG Conductor, Copper
Data-Spec SheetBURNDY® GAR3903 GAR3902 Mechanical Grounding Connector, 1-1/4 to 2 in Rod, 4 to 4/0 AWG Conductor, Copper

Documents

Short Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.

Features

  • High conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes
  • Cable clamp swivels at 90 deg
  • Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes
  • Simplified installation
  • Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete
  • Provides quality assurance to recognized industry NEC standards from an independent party
  • Steel hardware
  • 200 in-lb installation torque
  • 3/8 in bolt
  • 4 - 4/0 AWG stranded (main/primary) conductor range
  • Galvanized screw
  • 1-1/4 to 2 in IPS pipe
  • Made of High-Conductivity Copper

Specification

Installation
One-Wrench
Material
Copper
Minimum Order Qty
1
Order Interval
1
Conductor Type
Copper
Pipe Size
1-1/4 to 2 in
Standard & Approvals
UL467, cULus Listed, CSA Certified, RoHS Compliant
Dimensions
1-3/4 in L x 4-1/4 in W x 4 in H
Connection Type
Conductor to Water Pipe
Conductor Size
4 to 4/0 AWG
Catalog ID
BURGAR3903
Application
For connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes, direct burial cables
Series
GAR3902
Rod Size
1-1/4 to 2 in
