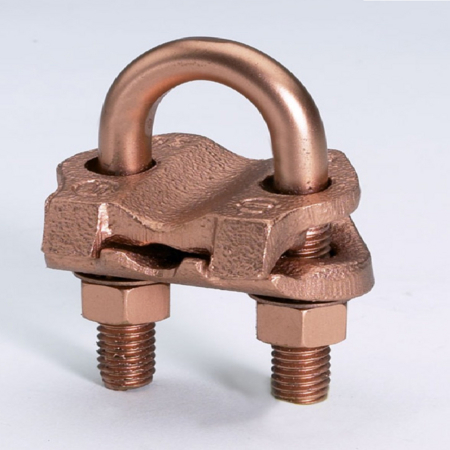

BURNDY® GAR6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper

Selected Data-Spec SheetBURNDY® GAR6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper
Data-Spec SheetBURNDY® GAR6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper

Documents

Short Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.

Features

  • High copper alloy ground connector for joining a range of cable
  • Parallel or at right angles to rod or tube
  • Especially good for fence posts
  • High copper alloy cast body with durium U-bolts, nuts and lock washers
  • Permit entire connection to be buried in ground or concrete without danger of corrosion
  • Acceptable for direct burial
  • Silicon bronze hardware
  • NO 5 - 6 rebar
  • 240 in-lb installation torque
  • 3/8 in bolt
  • 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range
  • 3/8 in IPS pipe
  • Made of High Copper Alloy

Specification

Installation
One-Wrench
Material
Copper
Minimum Order Qty
1
Order Interval
1
Conductor Type
Copper
Connection Type
Cable to Rod/Pipe
Finish
Bright Dipped
Pipe Size
3/8 in
Rod Size
5/8 to 3/4 in
Series
GAR
Application
For joining a range of cable, parallel or at right angles to rod or tube, direct burial cable, fence post
Standard & Approvals
UL467, cULus Listed, CSA Certified, RoHS Compliant
Dimensions
1.56 in L x 2-1/8 in W x 2-7/8 in H
Conductor Size
4 to 2/0 AWG
Catalog ID
BURGAR6426
