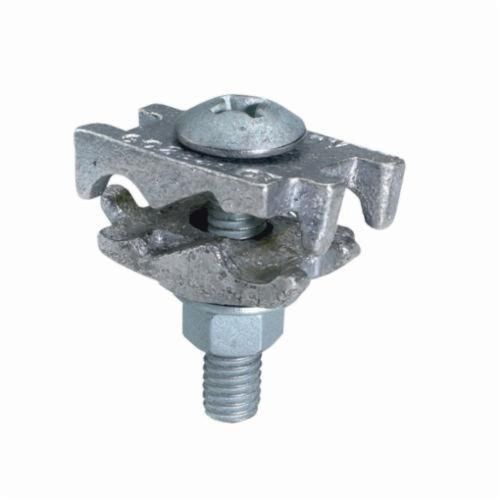

BURNDY® GC2626CT GC-CT Cable Tray Ground Clamp, 2 to 2/0 AWG Solid/Stranded Aluminum/Copper Conductor, Cast Copper Alloy, Tin Coated
BURNDY® GC2626CT GC-CT Cable Tray Ground Clamp, 2 to 2/0 AWG Solid/Stranded Aluminum/Copper Conductor, Cast Copper Alloy, Tin Coated
SKU: BURGC2626CT
Manufacturer Part Number: GC2626CT
UPC: 781810220573
Documents
Features
- It accommodates either one or two conductors, copper or aluminum cable
- In addition to a low profile head with a deep Phillips recess
- The galvanized steel bolt has a ribbed neck which prevents rotation during installation when installed in a 0.44 India hole
- When used on aluminum conductor, the cable must be scratch brushed and PENETROX a joint compound must be used on cable and connector
- Suitable for direct burial in concrete or earth
- The bolt head is mounted on the inside wall of cable tray to avoid damage to the cable insulation
- May be used with aluminum or galvanized steel cable tray
- 2 -2/0 AWG aluminum conductor
- 2 -2/0 AWG solid copper conductor
- 2 -2/0 AWG stranded copper conductor
- 3/8-16 stud
- 0.56 cross flats
- 240 in-lb installation torque
Specification
| Material | Copper |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Finish | Tin Plated |
| Standard & Approvals | UL 467, CSA Certified, RoHS Compliant |
| Series | GC-CT |
| Dimensions | 1.7 in W x 1.95 in H |
| Conductor Type | Copper/Aluminum |
| Conductor Size | 2 to 2/0 AWG |
| Catalog ID | BURGC2626CT |
