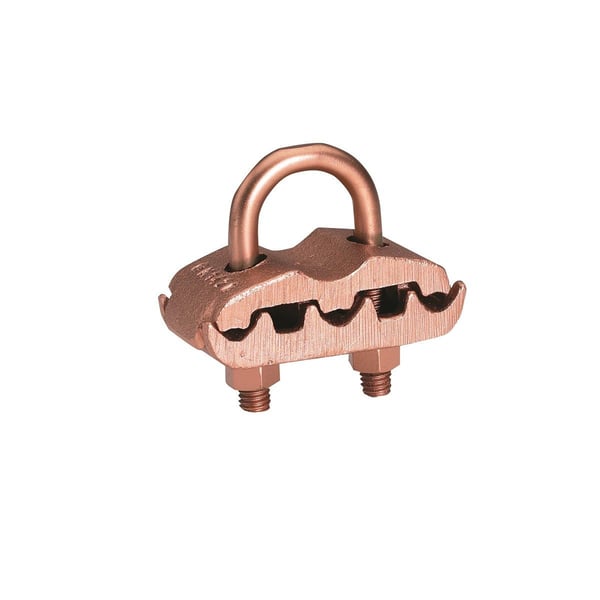

BURNDY® GK6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper Alloy

Selected GK6429BURNDY® GK6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper Alloy
GK6429BURNDY® GK6426 Mechanical Grounding Connector, 5/8 to 3/4 in Rod, 4 to 2/0 AWG Conductor, Copper Alloy

Documents

Short Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL 467 listed for direct burial applications in earth or concrete.

Features

  • High copper alloy ground connector for joining three equal cables to rod or tube
  • Cable grooves take a wide range of cable
  • High copper alloy cast body and Durium U-bolts, nuts and lock washers make the GK suitable for direct burial in soil or concrete
  • Acceptable for direct burial in earth and concrete
  • 240 in-lb installation torque
  • 3-gang/8 in bolt size
  • 4 AWG solid to 2/0 AWG stranded (main/primary) conductor size
  • 3-gang/8 in IPS pipe
  • Made of high strength copper alloy

Specification

Installation
Wrench
Material
Copper Alloy
Minimum Order Qty
1
Order Interval
1
Catalog ID
BURGK6426
Conductor Size
4 to 2/0 AWG
Conductor Type
Copper/Stranded/Solid
Connection Type
Cable to Rod/Pipe
Dimensions
3 in W x 2-7/8 in H
Finish
Unplated
Pipe Size
3/8 in
Rod Size
5/8 to 3/4 in
Series
GK Series
Application
For joining three equal copper cables to rod or tube, direct burial application in earth or concrete
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
