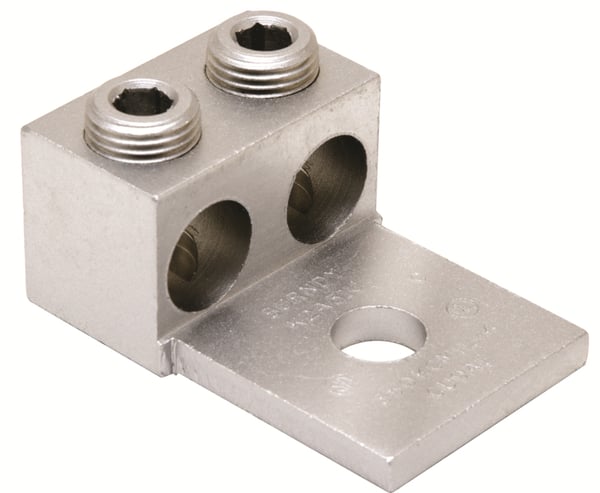

BURNDY® K2A31U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum

Selected Data-Spec SheetBURNDY® K2A31U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum
Data-Spec SheetBURNDY® K2A31U K2A-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 350 kcmil Aluminum/Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Aluminum

Documents

Short Description

BURNDY® is The Grounding Superstore™. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore™, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.

Features

  • Dual-rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin-plated to provide low contact resistance

Specification

Material
Aluminum
Number of Bolt Holes
1
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=DzVhxrg0TQY
Catalog ID
BURK2A31U
Conductor Size
6 AWG Stranded to 350 Kcmil
Conductor Type
Stranded Aluminum/Copper
Dimensions
2.88 in L x 1.25 in H
Finish
Electro-Tin Plated
Series
K2A-U
Specifications
1.25 in H x 1.94 in W Collar, Hex Screw, 275 in-lb installation torque
Stud Size
1/2 in
Temperature Rating
194 deg F
Tongue Size
1.69 in L x 0.25 in T
Tongue Style
Straight
Type
Dual Rated
Standard & Approvals
AL9CU Rated, CSA Certified, RoHS Complaint, UL 468A-468B Listed
Application
For aluminum and copper conductors
