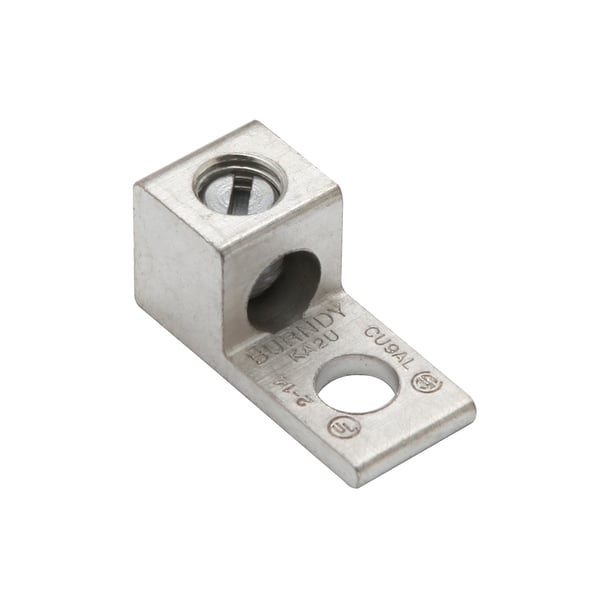

BURNDY® KA25U Dual Rated Universal Terminal Lug, 14 - 1/0 AWG Stranded Aluminum/Copper Conductor, 1/4 in Stud, Aluminum

Selected BURNDY® KA25U Dual Rated Universal Terminal Lug, 14 - 1/0 AWG Stranded Aluminum/Copper Conductor, 1/4 in Stud, Aluminum
BURNDY® KA25U Dual Rated Universal Terminal Lug, 14 - 1/0 AWG Stranded Aluminum/Copper Conductor, 1/4 in Stud, Aluminum

Documents

Short Description

BURNDY® is The Grounding Superstore™. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore™, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.

Features

  • Dual-rated one conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
  • 1 stud of 1/4 in
  • 14 - 1/0 AWG stranded aluminum, 12 AWG-1/0 AWG solid, 14 AWG-1/0 stranded

Specification

Material
Aluminum
Number of Bolt Holes
1
Series
KA-U
Stud Size
1/4 in
Tongue Style
Straight
Type
Dual Rated
Standard & Approvals
AL9CU Rated, CSA Certified, RoHS Complaint, UL 468A-468B Listed
Conductor Size
14 to 1/0 AWG
Application
For aluminum and copper conductors
Conductor Type
Stranded Aluminum/Copper
Finish
Electro-Tin Plated
Dimensions
1.5 in L x 0.63 in W
Tongue Size
0.81 in L x 0.19 in T
Specifications
0.80 in H x 0.63 W Collar, Slotted Screw, 50 in-lb installation torque
