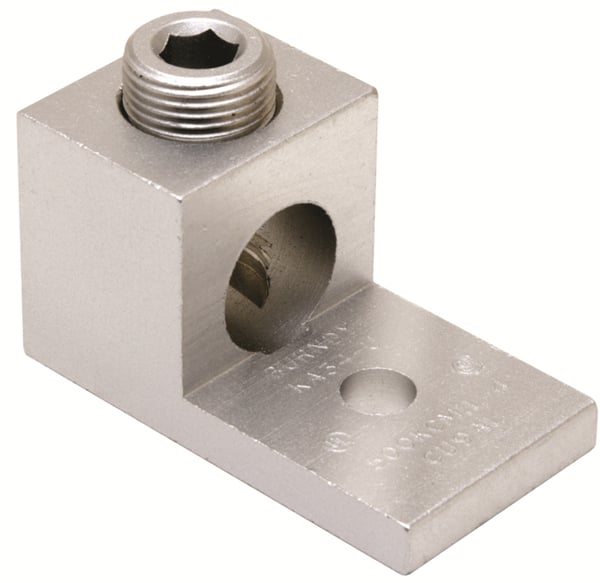

BURNDY® KA29U Dual Rated Universal Terminal Lug, 6 AWG - 250 Kcmil Stranded Aluminum/Copper Conductor

Selected Data-Spec SheetBURNDY® KA29U Dual Rated Universal Terminal Lug, 6 AWG - 250 Kcmil Stranded Aluminum/Copper Conductor
Data-Spec SheetBURNDY® KA29U Dual Rated Universal Terminal Lug, 6 AWG - 250 Kcmil Stranded Aluminum/Copper Conductor

Documents

Short Description

BURNDY® is The Grounding Superstore™. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore™, we offer four types of grounding products: Mechanical, Compression, Exothermic and Tooling & Accessories.

Features

  • Dual-rated one conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
  • 1 stud of 5/16 in

Specification

Material
Aluminum
Number of Bolt Holes
1
Series
KA-U
Specifications
1.13 in H x 1 in W Collar, Allen Screw Set , 275 in-lb installation torque
Stud Size
5/16 in
Tongue Size
0.94 in L x 0.25 in T
Tongue Style
Straight
Type
Dual Rated
Standard & Approvals
AL9CU Rated, CSA Certified, RoHS Complaint, UL 468A-468B Listed
Conductor Size
6 AWG Stranded to 250 Kcmil
Dimensions
2 in L x 1 in W
Application
For aluminum and copper conductors
Conductor Type
Stranded Aluminum/Copper
Finish
Electro-Tin Plated
