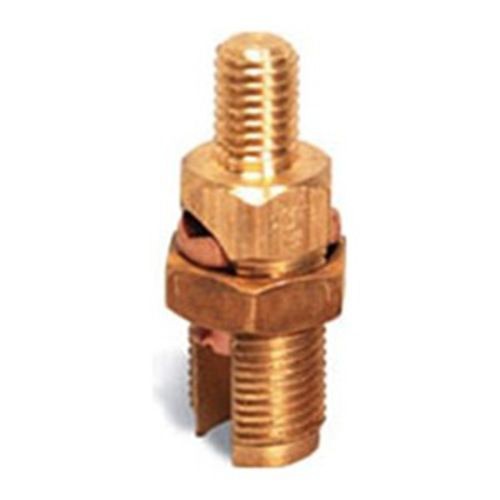

BURNDY® SERVIT POST™ KC23B1 Mechanical Grounding Connector, 10 to 2 AWG Conductor, Bronze

Selected BURNDY® SERVIT POST™ KC23B1 Mechanical Grounding Connector, 10 to 2 AWG Conductor, Bronze
BURNDY® SERVIT POST™ KC23B1 Mechanical Grounding Connector, 10 to 2 AWG Conductor, Bronze

Short Description

All BURNDY® mechanical grounding connectors have been designed for easy installation and for outstanding durability. Only the finest high copper alloys are used in their manufacture, ensuring top performance under the most extreme environmental conditions. UL467 Listed for direct burial applications in earth or concrete.

Features

  • Also used to tap one or two cables from bus bar
  • 10 - 1 AWG solid, 8 - 2 AWG stranded conductor size
  • 3/8-16 thread size
  • Made of Leaded Bronze Alloy

Specification

Installation
One-Wrench
Material
Bronze
Minimum Order Qty
1
Order Interval
1
Conductor Type
Copper
Application
Used to ground one or two copper cables to steel structures, fence posts, transformers, tap one or two cables from bus bar and direct burial
Standard & Approvals
UL467, CSA Certified, RoHS Compliant
Series
KC
Dimensions
2.09 in L x 0.62 in W x 1.05 in H
Connection Type
Cable to Flat
Conductor Size
10 to 2 AWG
Catalog ID
BURKC23-B1
Outside Diameter
13/16 in
